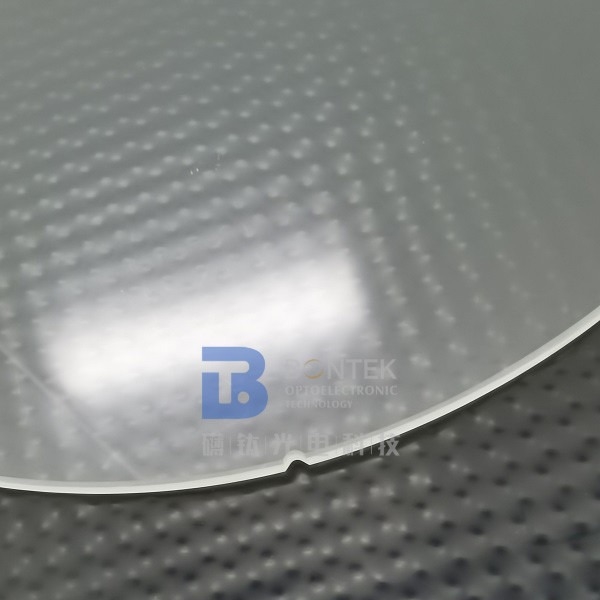

UV Optical Grade Quartz Wafers For Semiconductor Photomask Microwave Filter

UV Optical Grade Quartz Wafers For Semiconductor Photomask Microwave Filter

Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:9001, ISO:14001
Model Number: Fused Silica, Fused Quartz

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable

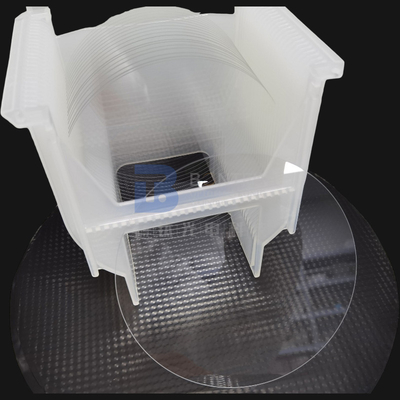

Packaging Details: Cassette/ Jar package, vaccum sealed
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 20000 pcs/Month
Get Best Price Contact Now

Detail Information

Material: Glass Substrate Type: Fused Quartz, Fused Silica, Borosilicate
Brand: Schott, Feilihua, Corning Grade: UV, Optical, Semiconductor Grade
Diameter: 100mm, 150mm, 200mm, Etc. Thickness: 0.5mm, 1mm, Etc.
Edge: Round Ground Surface Finish: Single / Double Side Polish
High Light:

Optical Grade Quartz Wafers

,

Borosilicate Glass Substrate

,

UV Quartz Wafers

Product Description

UV, Optical Grade Quartz Wafers For Semiconductor, Photomask, Microwave Filter, Optical Use​



BonTek supply high quality fused silica, fused quartz substrates in UV, optical and semiconductor grade. Quartz wafers have many unique characteristics, such as high operating temperature, high anti-corrosion, good thermal conductivity, high optical transmittance, and low dielectric loss, which make quartz wafers suitable for semiconductor, photomask, microwave filter, optical lens, optical fiber applications. We can fabricate quartz glass either in round or squared shape, with flat or Notch or just round, either single side polish or double side polish. The diameter is from several millimeter to 14 inch, thickness from 0.1mm to 10mm. BonTek also possess the cleaning line and clean room which ensures the best product condition.



Specification 3” 4” 5" 6" 8"
Diameter 76.2mm 100mm 125mm 150mm 200mm
Tol(±) <0.1~0.25 mm
Thickness >0.10mm >0.10mm >0.30mm >0.30mm >0.30mm
Primary Flat 22mm 32.5mm 42.5mm

57.5mm

Notch

Notch
TTV <8um <10um <15um <20um <30um
Bow ±20um ±25um ±40um ±40um ±60um
Warp <30um <40um <50um <50um <60um
PLTV(<0.5um) ≥95%(5mm*5mm)
Transmittance UV, Optical, IR or Custom option
Edge Rounding Compliant with SEMI M1.2 Standard/refer to IEC62276
Surface Type Single Side Polished /Double Sides Polished
Polished side Ra <1.0nm or specific per requested
Back Side Criteria General is 0.2-0.5µm or as customized
Appearance Contamination None
Particles>0.3µm <=30
Saw Marks, striations None
Scratch None
Cracks, saw marks, stains None



UV Optical Grade Quartz Wafers For Semiconductor Photomask Microwave Filter 0UV Optical Grade Quartz Wafers For Semiconductor Photomask Microwave Filter 1UV Optical Grade Quartz Wafers For Semiconductor Photomask Microwave Filter 2



Schott Brand

BOROFLOAT 33

Density

2.23 g/cm3

Modulus of Elasticity

63 kN/mm2

Knoop Hardness HK 0.1/20

480

Poisson’s Ratio

0.2

Dielectric Constant (@ 1 MHz & 25°C)

4.6

Loss Tangent (@ 1 MHz & 25°C)

37 x 10-4

Dielectric Strength(@ 50 Hz & 25°C)

16 kV/mm

Refractive Index

1.472

Dispersion (nF - nC)

71.9 x 10-4



Feilihua Model

JGS1

JGS2

JGS3

Maximum Size

<Φ200mm

<Φ300mm

<Φ200mm

Transmission Range (Medium transmission ratio)

0.17~2.10um (Tavg>90%)

0.26~2.10um (Tavg>85%)

0.185~3.50um (Tavg>85%)

OH- Content

1200 ppm

150 ppm

5 ppm

Fluorescence (ex 254nm)

Virtually Free

Strong v-b

Strong V-B

Impurity Content

5 ppm

20-40 ppm

40-50 ppm

Birefringence Constant

2-4 nm/cm

4-6 nm/cm

4-10 nm/cm

Melting Method

Synthetic CVD

Oxy-hydrogen melting

Electrical melting

Applications

Laser substrate: Window, lens, prism, mirror...

Semiconductor and high temperature window

IR & UV
substrate



UV Optical Grade Quartz Wafers For Semiconductor Photomask Microwave Filter 3



UV Optical Grade Quartz Wafers For Semiconductor Photomask Microwave Filter 4

UV Optical Grade Quartz Wafers For Semiconductor Photomask Microwave Filter 5



FAQs:



  1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.



  1. Q: Can you accept product customization?

A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.



  1. Q: Can you deliver the goods via our courier agent?

A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.



  1. Q: How can you guarantee we get what we want safely?

A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.



  1. Q: Can we visit your factory?

A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.





Acceptance Check

UV Optical Grade Quartz Wafers For Semiconductor Photomask Microwave Filter 6



  • The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



  • After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.

  • Please open the vacuum package in a clean room when the products are to be applied.



  • If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
