Fused Quartz Glass Wafers As The Si-Diaphragms Mechanical Stabilization
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Fused Silica, Fused Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

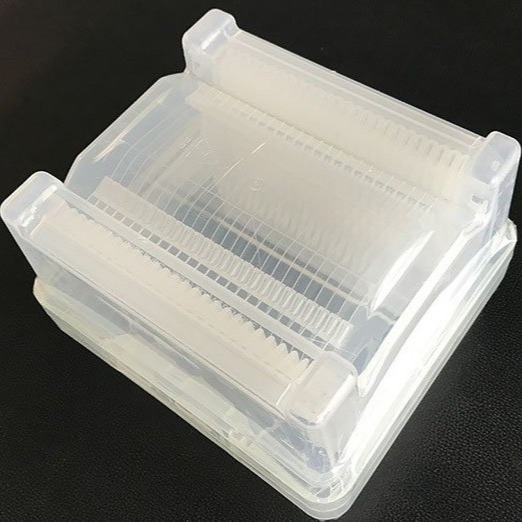

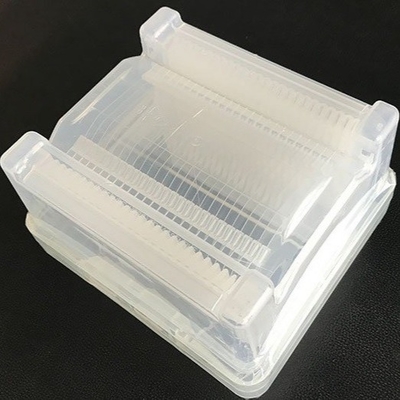

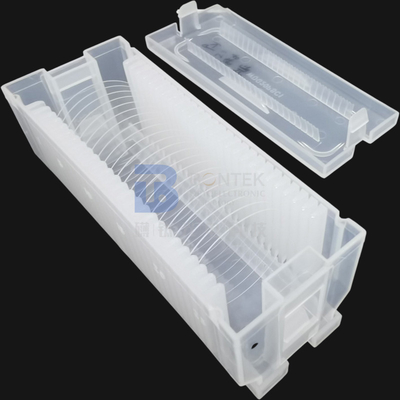

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Glass Substrate | Series: | Fused Quartz, Fused Silica, Borosilicate |
|---|---|---|---|
| Brand: | Schott, Feilihua, Corning | Use: | Etching Structuring Masks |
| Dia.: | 4inch, 6inch, 8inch, 12inch | Thickness: | 0.5±0.025mm, 1±0.025mm, Etc. |
| Edge Profile: | "C" Shape | Surface: | Single / Double Side Polish |
| High Light: | Fused Quartz Glass Wafers,12inch fused silica substrates,4inch Glass Wafers |
||
Product Description
Glass Wafers As The Si-Diaphragms Mechanical Stabilization And MEMS Etching Structuring Masks
Wafers made of glass, are the basis of the modern micro system technology. It is especially used in the semiconductor industries. A common application is the mechanical stabilization of thin Si-diaphragms for sensors, and etching structuring masks for MEMS.
The glass wafer substrates are the basic components of LCD panels and OLED substrates, and the wafer quality influences the production yield. BonTek is an experienced glass wafer supplier offering Fused Silica wafers, Borofloat glass wafers, borosilicate glass wafers, Corning Glass wafers, etc.
|
SCHOTT |
Borofloat33 / BK7 / B270 / D263 etc. |
|
CORNING |
Eagle XG, Fused Silica 7980 / 7978 / 7979 etc. |
|
Feilihua |
Fused Silica JGS1 / JGS2 & Single quartz etc. |
|
OHARA |
SK-1300, SK-1310 |
|
GM |
H-K9L / Soda Lime etc. |
|
Size |
3” | 4” | 6" | 8" |
|
Diameter |
76.2mm | 100mm | 150mm | 200mm |
|
Tolerance |
<0.1~0.25 mm | |||
|
Thickness |
>0.10mm | >0.25mm | >0.35mm | >0.35mm |
|
Primary Flat |
22mm | 32.5mm |
57.5mm Notch |
Notch |
|
TTV |
<8um | <10um | <20um | <30um |
|
Bow |
±20um | ±25um | ±40um | ±60um |
|
Warp |
<30um | <40um | <50um | <60um |
|
PLTV (<0.5um) |
≥95% (5mm*5mm) | |||
|
Transmittance |
UV, Optical, IR or Custom option | |||
|
Surface Type |
SSP, DSP, DSL | |||
|
Polished side |
<1.0nm or specific per requested | |||
|
Back Side Criteria |
General is 0.2-0.5µm or as customized | |||
|
Appearance |
Contamination | None | ||
| Particles>0.3µm | <=30 | |||
| Saw Marks, striations | None | |||
| Scratch | None | |||
| Cracks, saw marks, stains | None | |||
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
