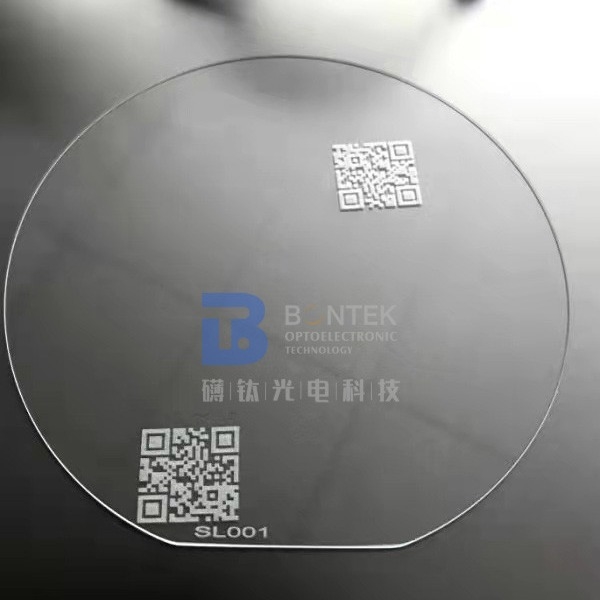

Diameter 150mm Glass Wafers Thickness 0.35mm in Fused Silica Borosilicate
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Fused Silica, Fused Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

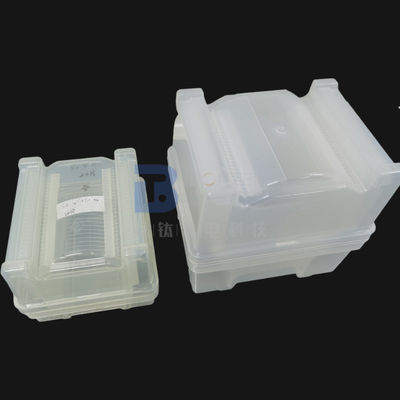

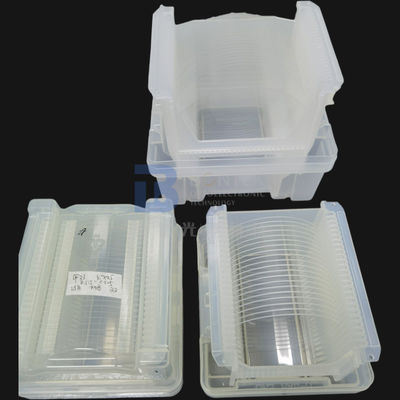

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Glass Wafers | Glass: | Soda Lime |
|---|---|---|---|
| Application: | Displaying | Inspection: | TTV, BOW, WARP, Ra Report |
| Diameter: | 100mm, 150mm, 200mm，etc. | Thickness: | 0.35mm, 1mm, Etc. |
| Surface Type: | Double Side Polish | Edge: | Round Ground Bevel |
| High Light: | 150mm Glass Wafers,Borosilicate double side polished wafers,Glass Wafers 0.35mm |
||
Product Description
Diameter 150±0.2mm Glass Wafers Thickness 0.35±0.025mm in Fused Silica Borosilicate
BonTek is a recognized participant in the manufacture of transparent Glass wafers. Many industries around the world rely on glass wafers in their daily operations and product creation. Our wafers can be found in semiconductor, optical, medical, military, industrial, lighting, photonic industry etc.
BonTek is an experienced glass wafer supplier offering Fused Silica wafers, Borofloat glass wafers, borosilicate glass wafers, Corning Glass wafers, etc., offering the most advanced products on the market today. Apart from standard glass wafer size, such as 76.2mm, 100mm, 150 etc. BonTek fabricate customized wafers with diameter up to diameter of 400mm, as well as rectangular shapes.
A typical 4 inch glass wafer is 100±0.2mm in diameter, thickness above 0.1±0.025mm. It can be either with or without a 32mm flat.
For 6 inch wafers, the diameter is 150±0.2mm, thickness above 0.2±0.025mm. The flat is 47.5mm in Japan standard, 57.5mm as semi-standard, or with a semi-Notch.
|
Specification |
2" | 3" | 4" | 6" | 8" | 10" | 12” |
|
Diameter |
50.8mm | 76.2mm | 100mm | 150mm | 200mm | 250mm | 300mm |
|
Tolerance |
±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm |
|
Thickness |
100um and up | 100um and up | 100um and up | 300um and up | 400um and up | 500um and up | 500um and up |
|
Flat |
32.5mm | 32.5mm | 32.5mm | 57.5mm | Semi-notch | Semi-notch | Semi-notch |
|
LTV (5mmx5mm) |
< 0.5um | < 0.5um | < 0.5um | < 0.5um | < 0.5um | < 0.5um | < 0.5um |
|
TTV |
< 2um | < 2um | < 2um | < 3um | <3um | <5um | <5um |
|
Bow |
±20um | ±20um | ±20um | ±30um | ±40um | ±40um | ±40um |
|
Warp |
≤ 30um | ≤ 30um | ≤ 30um | ≤ 40um | ≤ 50um | ≤ 50um | ≤ 50um |
|
Surface Type |
SSP/DSP | SSP/DSP | SSP/DSP | SSP/DSP | SSP/DSP | SSP/DSP | SSP/DSP |
|
Ra |
≤1nm | ≤1nm | ≤1nm | ≤1nm | ≤1nm | ≤1nm | ≤1nm |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
