50mm Langasite Crystal Wafers Surface Acoustic Wave (SAW) And Bulk Acoustic Wave (BAW) Devices
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Langasite Wafers |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 5000 pcs/Month |
|
Detail Information |
|||
| Product: | Langasite Wafers | Point Group: | 32 |
|---|---|---|---|
| Space Group: | P32I | Resistivity: | 4.0×1012Ω/cm-1 |
| Diameter: | 50mm | Thickness: | 0.13-0.5mm |
| Melting Point: | 1470℃ | Density: | 5.67g/cm3 |
| High Light: | 50mm Langasite Crystal Wafers,5.67g/cm3 LGS wafer,Langasite Crystal Wafers SAW |
||
Product Description

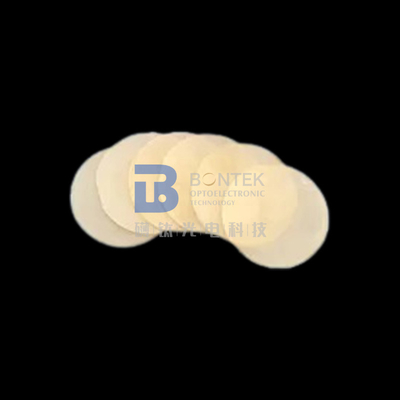

Langasite Wafers Fit for surface acoustic wave (SAW) and bulk acoustic wave (BAW) devices
With the rapid development of the communication technology, the new generation communication system enables people not only to talk, but also to transmit image, data and video. Langasite crystal possesses high SAW properties compared with quartz which make it to be the most competitive material in this field. SAW properties of langasite and quartz are listed in the Table below.
|
Langasite Wafer, YXIs /0/140/25 |
Tolerance |
|
|
Cut, A1 |
138.5° / 140° |
± 0.1° |
|
Cut, A2 |
26.7° / 25° |
± 0.1° |
|
Diameter D mm |
100mm |
±0.25mm |
|
Thickness T.mm |
0.50mm |
±0.03mm |
|
Reference Flat F1,mm |
32.0mm |
±2.50mm |
|
Secondary Flat F2, mm |
11.0mm |
±2.00mm |
|
Front Side |
Polished Ra < 1.0 nm |
|
|
Back Side |
Lapped, 0.4 um < Ra < 0.6um |
|
|
Flatness |
< 10μm |
|
|
Scratches, cracks, contamination, others (dimples, pits. orange peel) |
No such defects by visual inspection |
|
|
Chips |
|
|
|
Edge chips |
Radial depth < 0.5mm: |
|
|
Edge |
Round Ground, C shape |
|
|
Properties Crystals |
Quartz (SiO2) |
Langasite (La3Ga5SiO14) |
|
Density (g/cm3) |
2.65 |
5.746 |
|
SAW Velocity Vef (m/s) |
(0º,132.75º,0º) 3157 |
(0º,140 º,25 º) 2756 |
|
K2emc,%(SAW) |
0.14 |
0.36 |
|
Second order temp.coef. α2(x10-8/°C2) |
-3.2 |
-6.8 |
|
Temp. Coef. TTO(°C) |
25 |
23 |
|
Dielectric Constant (ε) |
4.92 |
27 |
|
Power flow angle Ф, º |
0 |
0.5 |
