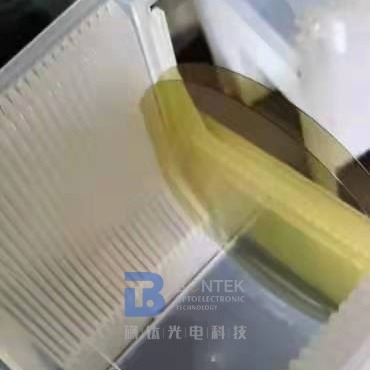

Euler Angles 0° 138.5° 26.7° Langasite Wafers Double Side Polish Diameter 60mm
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Langasite Wafers |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 5000 pcs/Month |
|
Detail Information |
|||
| Product: | Langasite Wafers | Growth Method: | Czochralski |
|---|---|---|---|
| Hardness: | 6.6 Moh's | Resistivity: | 4.0×1012Ω/cm-1 |
| Thermal Expansion (x10-6/ OC): | α 11: 5.10 α 33: 3.61 | Acoustic Velocity, SAW: | 2400 ( M/sec ) |
| Frequency Constant, BAW: | 1380 ( KHz/mm ) | Piezoelectric Coupling: | K2 (%) BAW: 2.21 SAW: 0.3 |
| High Light: | Euler Angles Langasite Wafers,Double Side Polished Wafer 60mm,Langasite Wafers 60mm |
||
Product Description
Euler Angles 0°,138.5°,26.7° Langasite Wafers Double Side Polish Diameter 60mm

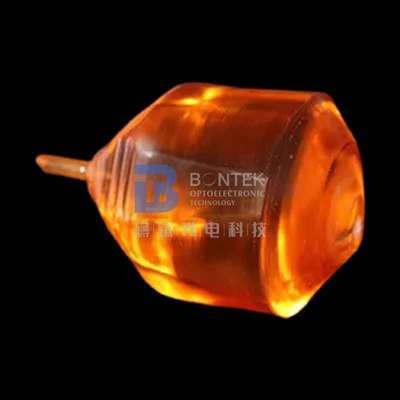

Lanthanum gallium silicate crystal has excellent physical and chemical properties and has optical and electro-optical properties. It is a new type of optical-electro-optical Q-switch material. Lanthanum gallium silicate (LGS) has good electro-optical properties, the half-wave voltage can be adjusted with the aspect ratio, its optical damage threshold is high, the optical rotation is small, moderate hardness and good mechanical properties and chemical stability are excellent Electro-optic crystal.
Diameter: 10 - 60 mm, or can be customized
Thickness: 0.25-0.5 mm, or can be customized
Total Thickness Variation (TTV) for a 2" Wafer: < 10um
First Reference Flat: 15.0 mm
Second Reference Flat: 8.0 mm
Surface Roughness (Polished): Ra ≤ 1 nm
Surface Polish Choices: SSP or DSP.
Orientations: Euler angles (0°,138.5°,26.7°) or (0°,22°,90°), or Z-cut, or following customer specifications. Definition of Euler angles (0,138.5,26.6): 42.5 degree rotated Y-cut with reference flat perpendicular to 26.6 degree rotated X axis
|
Crystal Structure |
regional system, group 33 a= 8.1783 c = 5.1014 |
|
Growth Method |
Czochralski |
|
Hardness |
6.6 Moh's |
|
Density |
5.754 g/cm3 |
|
Melt Point |
1470 o C ( phase transition point: N/A) |
|
Thermal expansion (x10-6/ oC) |
α 11: 5.10 α 33: 3.61 |
|
Acoustic velocity, SAW |
2400 ( m/sec ) |
|
Frequency constant, BAW |
1380 ( kHz/mm ) |
|
Piezoelectric coupling |
K2 (%) BAW: 2.21 SAW: 0.3 |
|
Inclusions |
N0 |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
