Material: Langasite Wafers Electromechanical Coupling Factor: 15.8
Frequency Spacing Δf, %: 0.90 Cut, A1: 138.5° ± 0.1°
Cut, A2: 26.7° ± 0.1° Diameter: 100mm ±0.25mm
Thickness: 0.5mm ±0.03mm SAW Velocity Vef: (0º,140 º,25 º) 2756 M/s
High Light:

SAW Sensors LGS Crystal

,

0.5mm Piezoelectric Wafers

,

100mm LGS Crystal

Product Description

Piezoelectric Langasite Wafers LGSO Crystal For High Temperature SAW Sensors



LGS Crystal is a multifunctional crystal. The interaction between the electro-optical effect and optical rotation in the functional crystal has been considered and studied, and it can be used as an electro-optical crystal.



Its piezoelectric moduli are about three times larger than for quartz. So a moderately high electro-mechanical coupling coefficient, increasing bandwidth, decreasing insertion loss are expected.



Second, its SAW phase velocity is lower than for quartz. Since the finger width of interdigital transducers (IDTs) for SAW generation determines the acoustic wavelength, SAW devices on CGG-type substrates potentially may have sizes.



Third, in contrast to quartz, where the temperature range of application is limited due to a structural phase transition, the crystals show structural stability up to the melting point. This offers the opportunity of SAW application at elevated temperatures, especially in sensor devices.

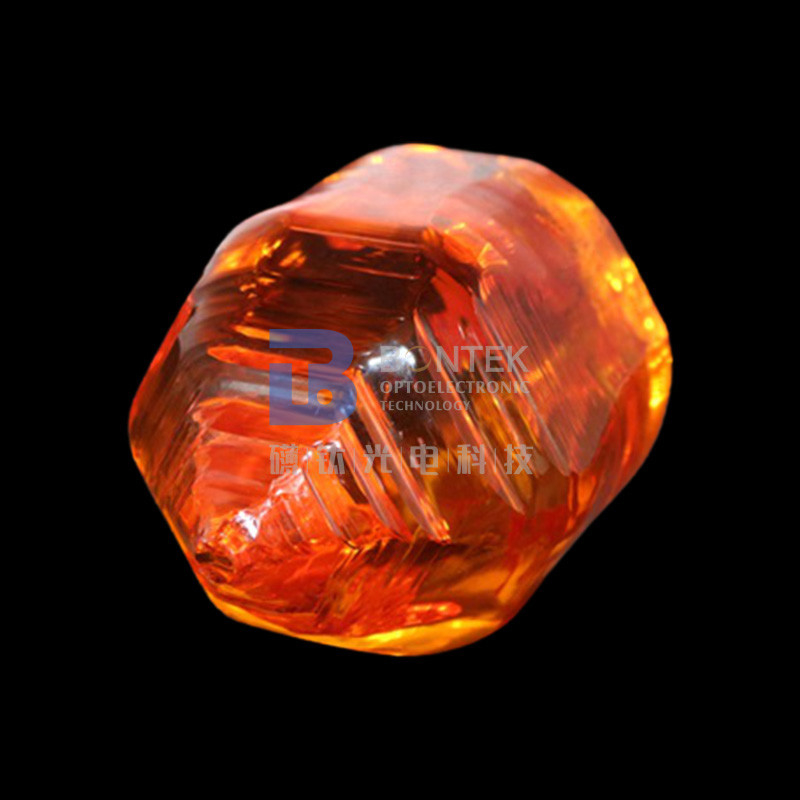

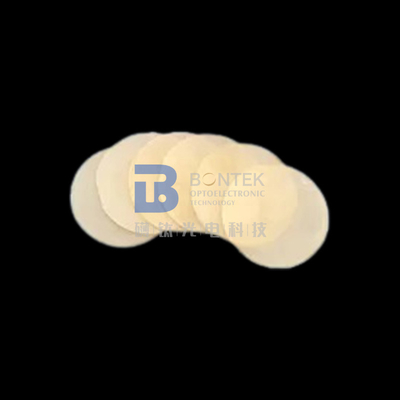

Piezoelectric Wafers LGS Crystal For High Temperature SAW Sensors 0Piezoelectric Wafers LGS Crystal For High Temperature SAW Sensors 1Piezoelectric Wafers LGS Crystal For High Temperature SAW Sensors 2



Langasite Wafer, YXIs /0/140/25

Tolerance

Cut, A1

138.5° / 140°

± 0.1°

Cut, A2

26.7° / 25°

± 0.1°

Diameter D mm

100mm

±0.25mm

Thickness T.mm

0.50mm

±0.03mm

Reference Flat F1,mm

32.0mm

±2.50mm

Secondary Flat F2, mm

11.0mm

±2.00mm

Front Side

Polished Ra < 1.0 nm

Back Side

Lapped, 0.4 um < Ra < 0.6um

Flatness

< 10μm

Scratches, cracks, contamination, others (dimples, pits. orange peel)

No such defects by visual inspection

Edge chips

Radial depth < 0.5mm:
Peripheral chord length < 1.0mm
No chips by visual inspection



Properties Crystals

Quartz SiO2 Langasite La3Ga5SiO14 Lithium tetraborate Li2B4O7 Lithium Tantalite LiTaO3

Electromechanical Coupling Factor K%(BAW)

7.0 15.8 24.0 47.0

Frequency Spacing Δf, %

0.25 0.90 4.00 7.00

Q-Factor Q, x103

100 50 10 2

Temperature Frequency Coefficient TFC, x10-6/°C

0.5 1.6 6.0 4.0


Piezoelectric Wafers LGS Crystal For High Temperature SAW Sensors 3
