Langasite Double Side Polished Wafer 60mm Euler Angles 0° 138.5° 26.7°
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Langasite Wafers |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 5000 pcs/Month |
|
Detail Information |
|||
| Product: | Langasite Wafers | Growth Method: | Czochralski |
|---|---|---|---|
| Hardness: | 6.6 Moh's | Resistivity: | 4.0×1012Ω/cm-1 |
| Thermal Expansion (x10-6/ OC): | α 11: 5.10 α 33: 3.61 | Acoustic Velocity, SAW: | 2400 ( M/sec ) |
| Frequency Constant, BAW: | 1380 ( KHz/mm ) | Piezoelectric Coupling: | K2 (%) BAW: 2.21 SAW: 0.3 |
| High Light: | Double Side Polished Wafer 60mm,6.6 Mohs Langasite substrates,Langasite Double Side Polished Wafer |
||
Product Description

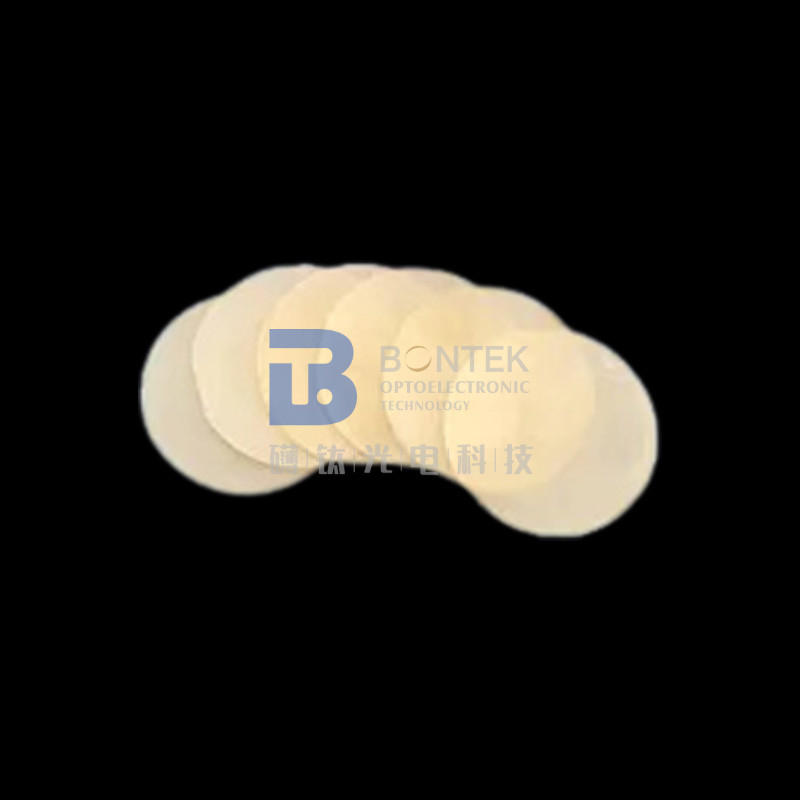

Euler Angles 0°,138.5°,26.7° Langasite Wafers Double Side Polish Diameter 100mm

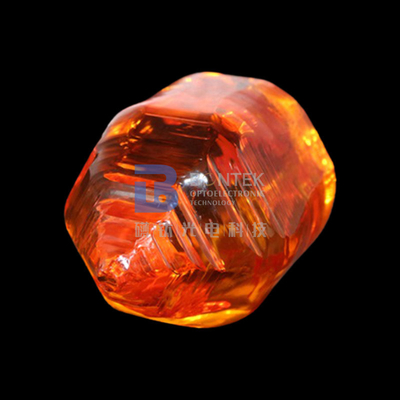

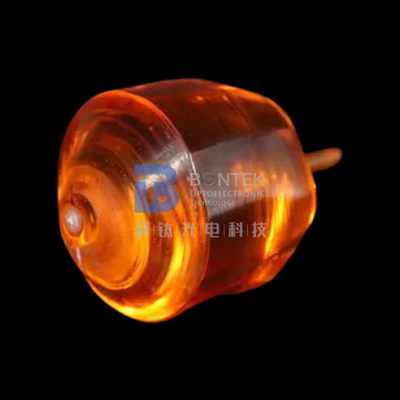

Lanthanum gallium silicate crystal has excellent physical and chemical properties and has optical and electro-optical properties. It is a new type of optical-electro-optical Q-switch material. Lanthanum gallium silicate (LGS) has good electro-optical properties, the half-wave voltage can be adjusted with the aspect ratio, its optical damage threshold is high, the optical rotation is small, moderate hardness and good mechanical properties and chemical stability are excellent Electro-optic crystal.
Langasite wafers are substrates fabricated from single crystal langasite suitable for use in surface acoustic wave applications. Such wafers are most commonly specified as 3" diameter with a reference flat. Wafer orientation is customer specified based on desired component performance characteristics. A high quality, low damage surface is prepared on one major (propagating) surface by polishing. The back side is usually lapped to a rougher finish to attenuate unwanted vibration modes.
|
Crystal Structure |
regional system, group 33 a= 8.1783 c = 5.1014 |
|
Growth Method |
Czochralski |
|
Hardness |
6.6 Moh's |
|
Density |
5.754 g/cm3 |
|
Melt Point |
1470 o C ( phase transition point: N/A) |
|
Thermal expansion (x10-6/ oC) |
α 11: 5.10 α 33: 3.61 |
|
Acoustic velocity, SAW |
2400 ( m/sec ) |
|
Frequency constant, BAW |
1380 ( kHz/mm ) |
|
Piezoelectric coupling |
K2 (%) BAW: 2.21 SAW: 0.3 |
|
Inclusions |
N0 |
|
Langasite Wafer, YXIs /0/140/25 |
Tolerance |
|
|
Cut, A1 |
138.5° |
± 0.1° |
|
Cut, A2 |
26.7° |
± 0.1° |
|
Diameter D mm |
100mm |
±0.25mm |
|
Thickness T.mm |
0.50mm |
±0.03mm |
|
Reference Flat F1,mm |
32.0mm |
±2.50mm |
|
Secondary Flat F2, mm |
11.0mm |
±2.00mm |
|
Surface |
||
|
Front Surface Finish |
Polished Ra < 1.0 nm |
|
|
Back Surface Finish |
Lapped, 0.4 pm < Ra < 0.6μm |
|
|
Flatness |
< 10μm |
|
|
Front Surface Defects |
||
|
Scratches, cracks, contamination, others (dimples, pits. orange peel) |
No such defects by visual inspection |
|
|
Chips |
|
|
|
Edge chips Surface |
Radial depth < 0.5mm: |
|
|
Bevel |
Rounded Edge |
|
