0.05mm To 10mm Fused Silica Fused Quartz Wafer JGS1 JGS2 JGS3
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Fused Silica Fused Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |

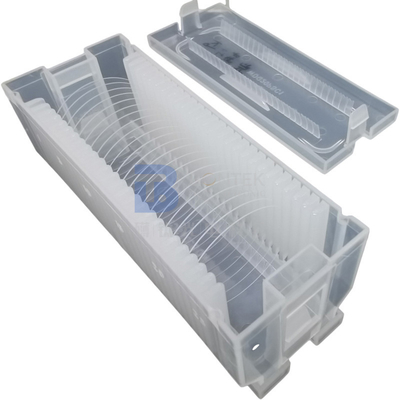

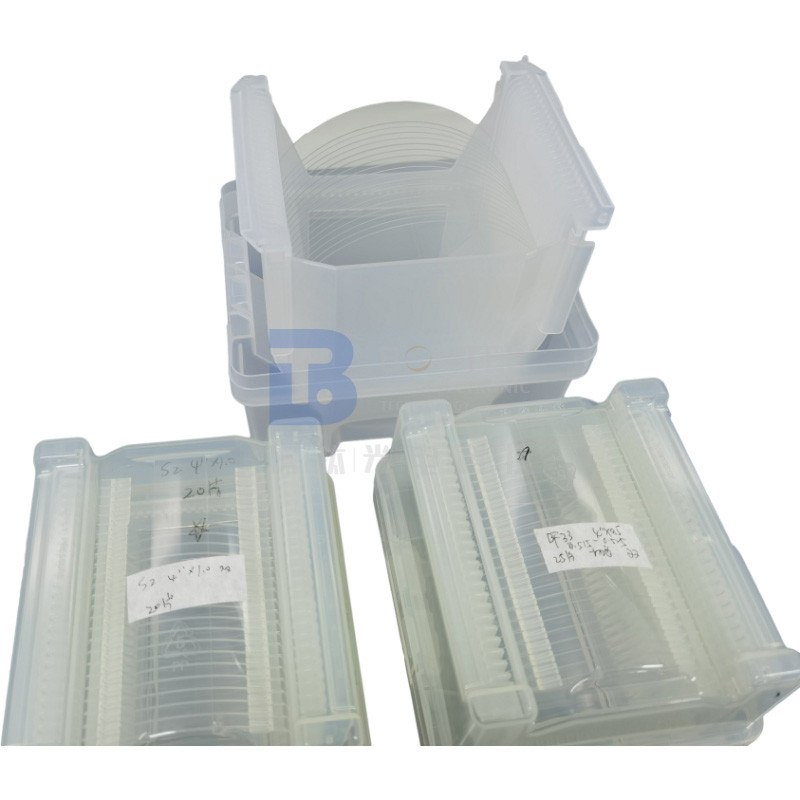

| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1 - 4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 Pieces/Month |
|
Detail Information |
|||
| Material: | Fused Silica Fused Quartz | Type: | JGS1, JGS2, JGS3, C7980, SK1300 |
|---|---|---|---|
| Size: | 1'' - 12'' Or As Required | Thickness: | 0.05mm - 10mm |
| Surface: | Double Side Polish, Single Side Polish, Lap | Ra Roughness: | <1nm |
| Scratch/Dig: | 60/40 | Edge: | Round Ground |
| High Light: | Fused Quartz Wafer 1 inch,Synthetic Quartz Glass Plate 12 inch,Lap Fused Quartz Wafer |
||
Product Description
Fused Silica Fused Quartz Wafer
We specialize in fabricating series of glass materials, including fused quartz, synthetic quartz, borosilicate glass, sodium calcium glass, low expansion glass, low alkali glass, etc., covering infrared, visible light, ultraviolet multiple bands, can be processed into excellent optical window material, base plate, etc.
Material Brand
|
Schott |
Borofloat33 / BK7 / B270 / D263 etc. |
|
Corning |
Eagle XG , Fused Silica 7980 / 7978 / 7979 etc. |
|
Feilihua |
Fused Silica JGS1 / JGS2 & Single quartz etc. |
|
Ohara |
SK-1300 |
|
GM |
H-K9L / Soda Lime etc. |
Processing Capacity
|
Specification |
unit | 3” | 4” | 5" | 6" | 8" | 12" |
| Diameter (or Square) | mm | 76.2 | 100 | 125 | 150 | 200 | 300 |
| Tol(±) | mm | <0.1~0.25 mm | |||||
| Thinnest Thickness | mm | >0.10 | >0.18 | >0.30 | >0.30 | >0.30 | >0.50 |
| Primary Flat | mm | 22 | 32.5 | 42.5 | 57.5/notch | notch | notch |
| LTV (5mmx5mm) | µm | <2 | <2 | <2 | <2 | <2 | <10 |
| TTV | µm | <5 | <5 | <5 | <5 | <10 | <10 |
| Bow | µm | ±15 | ±20 | ±30 | ±60 | ±60 | ±60 |
| Warp | µm | <15 | <20 | <30 | <40 | <70 | <70 |
| PLTV(<0.5um) | % | ≥95%(5mm*5mm) | |||||
| Transmittance | UV, Optical, IR or Custom option | ||||||
| Edge Rounding | mm | Compliant with SEMI M1.2 Standard/refer to IEC62276 | |||||
| Surface Type | Single Side Polished / Double Sides Polished | ||||||
| Polished side Ra | nm | <1.0nm or per requested | |||||
| Back Side Criteria | µm | General is 0.2-0.5µm or as customized | |||||
| Appearance | Contamination | None | |||||
| Particles >0.3µm | <=30 | ||||||
| Saw Marks, striations | None | ||||||
| Scratch | None | ||||||
| Cracks, crowsfeel saw marks, stains | None | ||||||
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
