6”Piezoelectric Wafer The Perfect Solution for Navigation Broadcasting and Time Control
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Material: | Single Crystal Quartz | Size: | Dia 6'' |
|---|---|---|---|
| Orientation: | X-cut, Y-cut, AT-cut | Thickness: | 0.075mm Up |
| Surface: | Polish, Lap, Etch | Usage: | Navigation, Broadcasting, Time And Frequency Control |
| Ra Roughness: | <1nm | Growth: | Hydrothermal Growth |
| High Light: | 4'' Single Crystal Quartz,0.075mm piezo quartz crystal,6'' Single Crystal Quartz |
||
Product Description

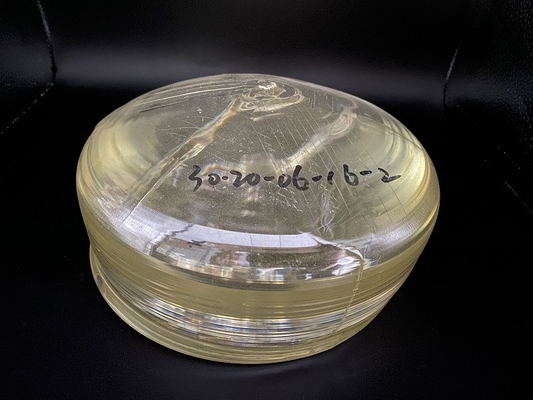

6”Piezoelectric Wafer The Perfect Solution for Navigation Broadcasting and Time Control
Single-crystal quartz wafers are precision-engineered components that offer unparalleled performance in a wide range of applications. These wafers, made from the purest quartz crystal, offer excellent frequency stability, mechanical strength, and thermal resistance.
With their high piezoelectric properties, quartz wafers are ideal for use in oscillators, resonators, and sensors, ensuring accurate and reliable performance in timing and frequency control applications. Their resistance to thermal expansion and contraction means they maintain stability even in extreme temperature environments.
From telecommunications to aerospace, single-crystal quartz wafers are the choice of professionals who demand precision and durability. Upgrade your technology with the best — choose single-crystal quartz wafers for superior performance and reliability.
|
Diameter |
50.8mm, 76.2mm, 100.0mm, 150mm |
|
Tolerance |
±0.2mm |
|
Thickness |
75um up as per request |
|
Tolerance |
±25um |
|
Orientation |
X0°, Y0°, 35.15°Y, 42.75°Y |
|
Tolerance |
±7’, ±15’, ±30’ |
|
TTV |
≤10um |
|
LTV |
≤2.0um within an area of 5×5mm |
|
PLTV |
≥95% (3mm from edge excluded) |
|
BOW |
-25um ≤Bow≤ +25um |
|
Warp |
<30um |
|
Top side |
Ra<1nm |
|
Back side |
GC#1000 lapped, 0.2um≤Ra≤0.7um |
|
Seed |
With seed, Seedless |
| Typical Material Properties | |
| Material |
Synthetic Quartz |
| rystal Structure and lattice parameters |
Hexagonal a= 4.914 Å c = 5.405 Å |
| Growth Method |
Hydrothermal method |
| Hardness |
7.0 Mohs |
| Density |
2.684 g/cm3 |
| Melt Point |
1750 deg C (phase transition point: 573.1 °C) |
| Specific heat |
0.18 cal/g |
| Thermoelectric Constant |
1200 mV / °C @ 300 °C |
| Thermal conductivity |
0.0033 cal/cm/ °C |
| T hermal expansion coefficient, (CTE) (x10^-6/ K) |
perpendicular to Z axis: 13.71 parallel to Z axis: 7.48 |
| Refractive Index |
1.544 |
|
Q value Acoustic velocity, SAW Frequency constant, BAW Piezoelectric coupling, |
1.8 x 10^6; 2.4 x 10^6, 3.0 x 10^6 3160 ( m/sec ) 1661 ( kHz/mm ) K2 (%) BAW: 0.65 SAW: 0.14 |
| Inclusion |
IEC Grade II |
