SiO2 Fused Quartz And Fused Silica Wafer In Infrared And Ultraviolet Spectrum
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Fused Silica, Fused Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Fused Silica Wafer | Structure: | Amorphous Phase |
|---|---|---|---|
| Diameter: | 76.2mm, 100mm, 150mm | Thickness: | 375um, 525um, 675um |
| Warp: | <40um, <70um | BOW: | ±30um, ±40um |
| TTV: | <5um, <10um | Transmission: | Infrared And Ultraviolet Spectrum |
| High Light: | Amorphous Phase Fused Silica Wafer,SiO2 Fused Quartz Wafer,Ultraviolet Spectrum Fused Silica Wafer |
||
Product Description

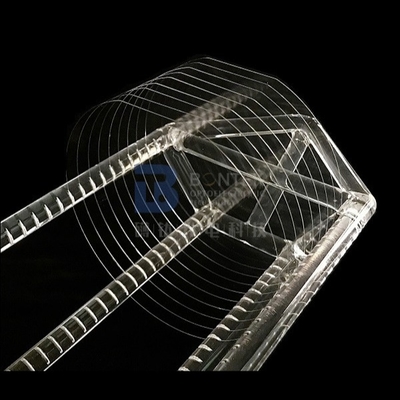

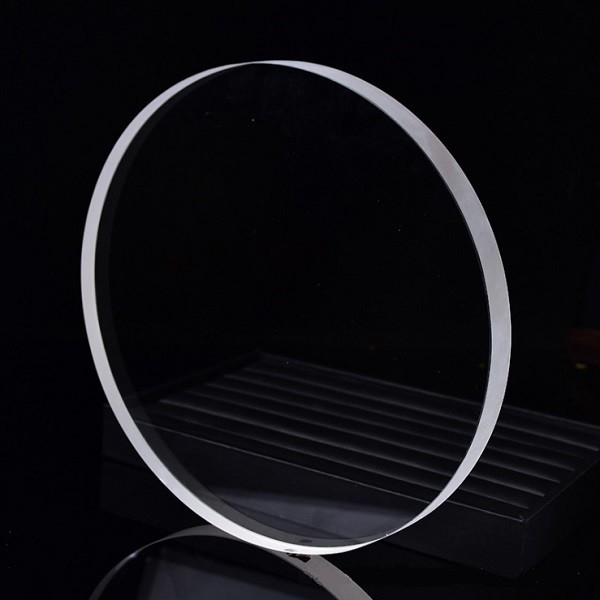

Amorphous Phase SiO2 Fused Quartz and Fused Silica Wafer in Infrared and Ultraviolet Spectrum
Fused Silica or Fused Quartz which is the amorphous phase of quartz (SiO2). When contrasted to borosilicate glass, fused silica has no additives; hence it exists in its pure form, SiO2. Fused silica has a higher transmission in the infrared and ultraviolet spectrum when compared to normal glass.
|
Specification |
3” |
4” |
5" |
6" |
8" |
12" |
|
Diameter |
76.2mm |
100mm |
125mm |
150mm |
200mm |
300mm |
|
Tol(±) |
<0.1~0.25 mm |
|||||
|
Thickness |
>0.10mm |
>0.10mm |
>0.30mm |
>0.30mm |
>0.30mm |
>0.50mm |
|
Primary Flat |
22mm |
32.5mm |
42.5mm |
57.5mm Notch |
Notch |
Notch |
|
TTV |
<8um |
<10um |
<15um |
<20um |
<30um |
<30um |
|
Bow |
±20um |
±25um |
±40um |
±40um |
±60um |
±60um |
|
Warp |
<30um |
<40um |
<50um |
<50um |
<60um |
<60um |
|
PLTV(<0.5um) |
≥95%(5mm*5mm) |
|||||
|
Transmittance |
UV, Optical, IR or Custom option |
|||||
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|||||
|
Material |
SiO2, fused silica (fused quartz) |
|
Diameter |
100 +/- 0.1 mm |
|
Thickness |
500 +/- 25 um |
|
Primary Flat |
32.5 +/- 2.0 mm |
|
Surface |
Double Side Polished (DSP) with surface roughness Ra < 1 nm |
|
S/D |
40/20 |
|
TTV |
< 10 um |
|
Edge |
with Bevel, C shape |
|
Material |
BOROFLOAT 33 |
|
Density (@ 25°C/77°F) |
2.23 g/cm3 |
|
Modulus of Elasticity |
63 kN/mm2 |
|
Knoop Hardness HK 0.1/20 |
480 |
|
Poisson’s Ratio |
0.2 |
|
Dielectric Constant (@ 1 MHz & 25°C) |
4.6 |
|
Loss Tangent (@ 1 MHz & 25°C) |
37 x 10-4 |
|
Dielectric Strength (@ 50 Hz & 25°C) |
16 kV/mm |
|
Refractive Index (nd) |
1.472 |
|
Dispersion (nF - nC) |
71.9 x 10-4 |
