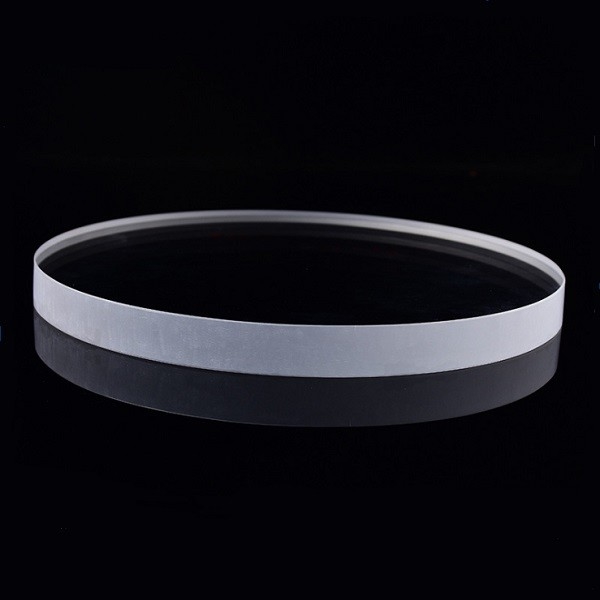

Synthetic Quartz Fused Silica Wafer Double Side Polish 4inch 0.5mm Thick
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Fused Silica, Fused Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

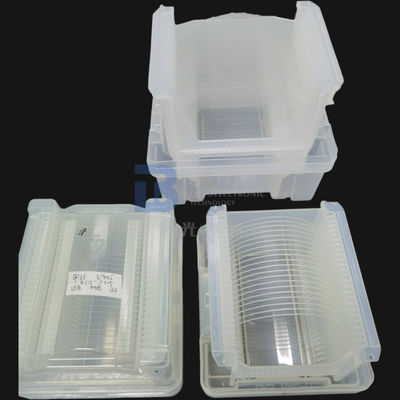

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Fused Silica Wafer | Brand: | Feilihua JGS1, JGS2, JGS3 |
|---|---|---|---|
| Diameter: | 76.2mm, 100mm, 150mm | Thickness: | 0.25mm, 0.35mm, 0.5mm |
| Transmission: | Infrared And Ultraviolet Spectrum | Spectral Range: | 200 Nm – 3 μm |
| OH Content: | <10ppm | TTV: | <5um, <10um |
| High Light: | 100mm Fused Silica Wafer,Fused single crystal quartz wafer,150mm Fused Silica Wafer |
||
Product Description
Synthetic Quartz Fused Silica Wafer Double Side Polish 6inch 0.5mm Thick
Ultraviolet Grade Fused Silica (JGS1) wafers encompass a high transparency in the ultraviolet spectral range. The transmission in the VIS and UV is approx. The transmission range of significantly cheaper JGS2 wafers is shifted towards longer wavelengths when compared with JGS1 wafers. UV-absorption of JGS2 starts below approx. 270 nm wavelengths, while in the VIS and IR the transmission is approximately 90 % up to approximately 2 μm wavelength. Full Spectrum Fused Silica (JGS3) are comparatively more expensive than the others. These wafers encompass very low OH-content (< 10 ppm) showing a high transparency of > 80 % over a broad spectral range of approximately 200 nm – 3 μm, and approximately 90 % in the wavelength range 0.25 – 2.5 μm.
|
Parameter |
JGS1 |
JGS2 |
JGS3 |
|||||
|
Maximum Size |
<Φ200mm |
<Φ300mm |
<Φ200mm |
|||||
|
Transmission Range (Medium transmission ratio) |
0.17~2.10um (Tavg>90%) |
0.26~2.10um (Tavg>85%) |
0.185~3.50um (Tavg>85%) |
|||||
|
OH- Content |
1200 ppm |
150 ppm |
5 ppm |
|||||
|
Fluorescence (ex 254nm) |
Virtually Free |
Strong v-b |
Strong V-B |
|||||
|
Impurity Content |
5 ppm |
20-40 ppm |
40-50 ppm |
|||||
|
Birefringence Constant |
2-4 nm/cm |
4-6 nm/cm |
4-10 nm/cm |
|||||
|
Melting Method |
Synthetic CVD |
Oxy-hydrogen melting |
Electrical melting |
|||||
|
Applications |
Laser substrate: Window, lens, prism, mirror... |
Semiconductor and high temperature window |
IR & UV |
|||||
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
