High Chemical Resistance Borosilicate Glass Wafer 4'' 6'' 8'' for MEMS Devices
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Fused Silica, Fused Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

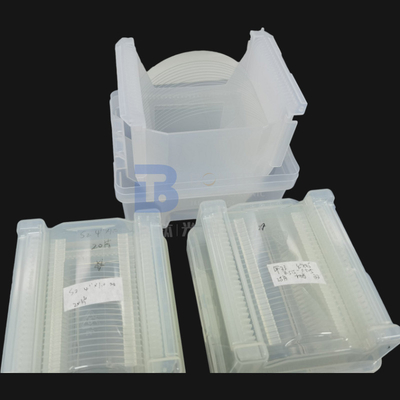

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Borosilicate Glass | Glass: | Pyrex BF33 |
|---|---|---|---|
| Brand: | Schott Brand | Use: | Anodic Bonding, MEMS |
| Diameter: | 100mm, 150mm, 200mm，etc. | Thickness: | 0.5mm, 1mm, Etc. |
| Edge: | Round Ground Bevel | Surface Type: | Single / Double Side Polish |
| High Light: | Borosilicate Glass Wafer 4'',semiconductor polished wafer 8'',Borosilicate Glass Wafer 6'' |
||
Product Description
High Chemical Resistance Borosilicate Glass Wafer 4'' 6'' 8'' for MEMS Devices

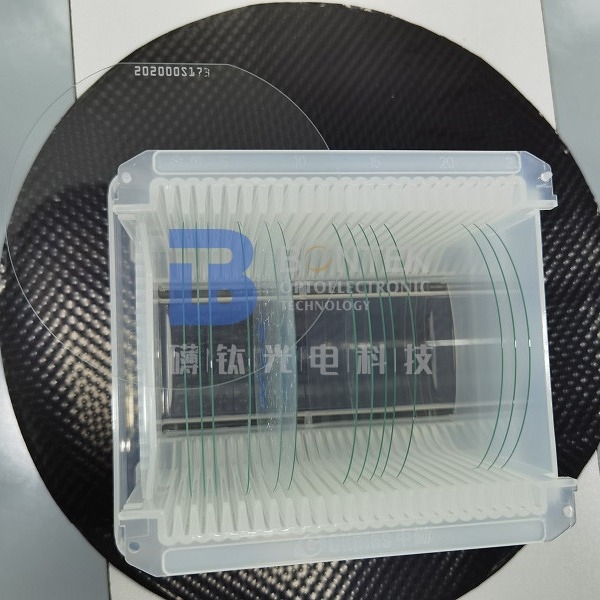

Glass wafers made of borosilicate glass are often used in Semiconductor and MEMS industry in a wide variety of applications. These wafers can be used for the encapsulation of MEMS devices for example for sensors using Wafer-Level-Packaging (WLP) technology or as blank glass substrates for semiconductor processing and optics.
The borosilicate glass wafers BonTek fabricated have a coefficient of thermal expansion (CTE) that is adapted to silicon, which makes them the perfect substrate to use in anodic bonding. The glass features good transmission over a wide spectrum as well as high chemical resistance and mechanical strength. Furthermore, these wafers can be used in high temperature processing.
|
Spec |
4" | 6" | 8" |
|
Diameter |
100mm | 150mm | 200mm |
|
Thickness |
0.10mm up |
0.30mm up |
0.40mm up |
|
Primary Flat |
32.5mm |
47.5mm / 57.5mm / Semi-Notch |
Semi-Notch |
|
LTV (5mmx5mm) |
< 0.5um | < 0.5um | < 0.5um |
|
TTV |
< 2um | < 3um | <3um |
|
Bow |
±20um | ±30um | ±40um |
|
Warp |
≤ 30um | ≤ 40um | ≤ 70um |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
||
|
Surface Type |
Single Side Polished / Double Sides Polished |
||
|
Polished side Ra |
Ra≤1nm |
||
|
Back Side Criteria |
Ra 0.2-0.7um or Customized |
||
|
Material |
PYREX BF33 |
|
Density |
2.23 g/cm3 |
|
Modulus of Elasticity |
63 kN/mm2 |
|
Knoop Hardness HK 0.1/20 |
480 |
|
Poisson’s Ratio |
0.2 |
|
Dielectric Constant (@ 1 MHz & 25°C) |
4.6 |
|
Loss Tangent (@ 1 MHz & 25°C) |
37 x 10-4 |
|
Dielectric Strength(@ 50 Hz & 25°C) |
16 kV/mm |
|
Refractive Index |
1.472 |
|
Dispersion (nF - nC) |
71.9 x 10-4 |
