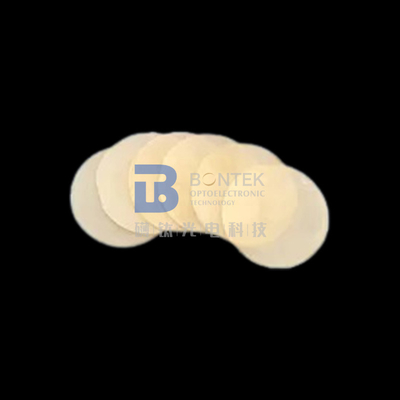

La3Ga5SiO14 Langasite Wafers For High And Low Temperature Variable Laser

La3Ga5SiO14 Langasite Wafers For High And Low Temperature Variable Laser

Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:9001, ISO:14001
Model Number: Langasite Wafers

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Cassette/ Jar package, vaccum sealed
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 5000 pcs/Month
Get Best Price Contact Now

Detail Information

Product: Langasite Wafers Point Group: 32
Space Group: P32I Resistivity: 4.0×1012Ω/cm-1
Diameter: 50mm Thickness: 0.13-0.5mm
Melting Point: 1470℃ Density: 5.67g/cm3
High Light:

La3Ga5SiO14 Langasite Wafers

,

0.5mm langasite crystal

,

50mm Langasite Wafers

Product Description

Customized La3Ga5SiO14 Langasite Wafers For High And Low Temperature Variable Laser

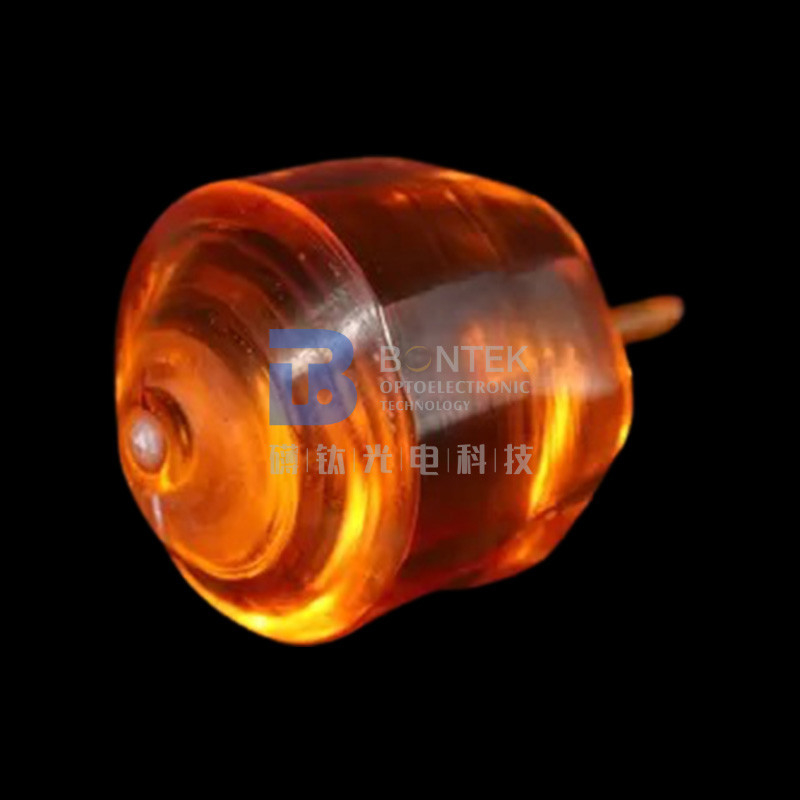

Langasite crystal possesses some great properties, such as higher electromechanical coupling factor than quartz, no phase transition from room temperature to melt point. Some properties of langasite crystal are shown in the table below.



La3Ga5SiO14 Langasite Wafers For High And Low Temperature Variable Laser 0La3Ga5SiO14 Langasite Wafers For High And Low Temperature Variable Laser 1La3Ga5SiO14 Langasite Wafers For High And Low Temperature Variable Laser 2



Langasite Wafer, YXIs /0/140/25

Tolerance

Cut, A1

138.5° / 140°

± 0.1°

Cut, A2

26.7° / 25°

± 0.1°

Diameter D mm

100mm

±0.25mm

Thickness T.mm

0.50mm

±0.03mm

Reference Flat F1,mm

32.0mm

±2.50mm

Secondary Flat F2, mm

11.0mm

±2.00mm

Front Side

Polished Ra < 1.0 nm

Back Side

Lapped, 0.4 um < Ra < 0.6um

Flatness

< 10μm

Scratches, cracks, contamination, others (dimples, pits. orange peel)

No such defects by visual inspection

Chips



Edge chips

Radial depth < 0.5mm:
Peripheral chord length < 1.0mm
No chips by visual inspection

Edge

Round Ground, C shape



Constant Relative Dielectric Constant Piezoelectric Constant (pC/N) Elastic Stiffness (1011Pa)
ε11 ε33 d11 d14 c11 c12 c13 c14 c33 c44
Value 18.96 50.19 5.66 -5.48 1.898 1.058 1.022 0.144 2.626 0.535
First Order Temp.Coef. (10-6.K-1) 150 -760 329 -342 -66 204 -75 -335 -94 -63



La3Ga5SiO14 Langasite Wafers For High And Low Temperature Variable Laser 3





FAQs:



  1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.



  1. Q: Can you accept product customization?

A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.



  1. Q: Can you deliver the goods via our courier agent?

A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.



  1. Q: How can you guarantee we get what we want safely?

A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.





Acceptance Check

La3Ga5SiO14 Langasite Wafers For High And Low Temperature Variable Laser 4



  • The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



  • After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.

  • Please open the vacuum package in a clean room when the products are to be applied.



  • If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
