| Product: | Langasite Wafers | Growth Method: | Czochralski |
|---|---|---|---|
| Hardness: | 6.6 Moh's | Resistivity: | 4.0×1012Ω/cm-1 |
| Thermal Expansion (x10-6/ OC): | α 11: 5.10 α 33: 3.61 | Acoustic Velocity, SAW: | 2400 ( M/sec ) |
| Frequency Constant, BAW: | 1380 ( KHz/mm ) | Piezoelectric Coupling: | K2 (%) BAW: 2.21 SAW: 0.3 |
| High Light: | Langasite Wafers SAW,Piezoelectric Wafer LGS Crystal,Langasite Wafers BAW |
||
Product Description
High Temperature use Langasite Wafers for SAW BAW Piezoelectric Applications
LGS Crystal is a multifunctional crystal. The interaction between the electro-optical effect and optical rotation in the functional crystal has been considered and studied, and it can be used as an electro-optical crystal. The LGS electro-optical Q switch transmits light along the Z direction of the crystal, and applies an electric field along the X direction, which can make full use of the lateral electro-optical effect of the crystal to realize the Q-switching function of the LGS crystal. LGS electro-optic Q-switch is actually a new type of rotary electro-optic Q-switch. Due to the existence of the optical rotation effect, it can be used as a practical switching device to obtain a good Q-switching effect. LGS crystal broadens the exploration and discovery of new types of electro-optic crystals from optically active crystals.

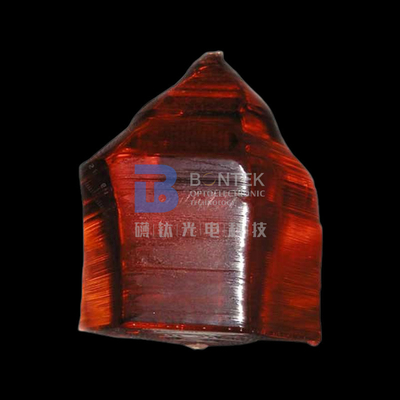

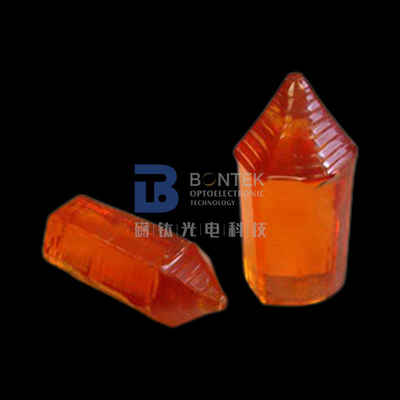

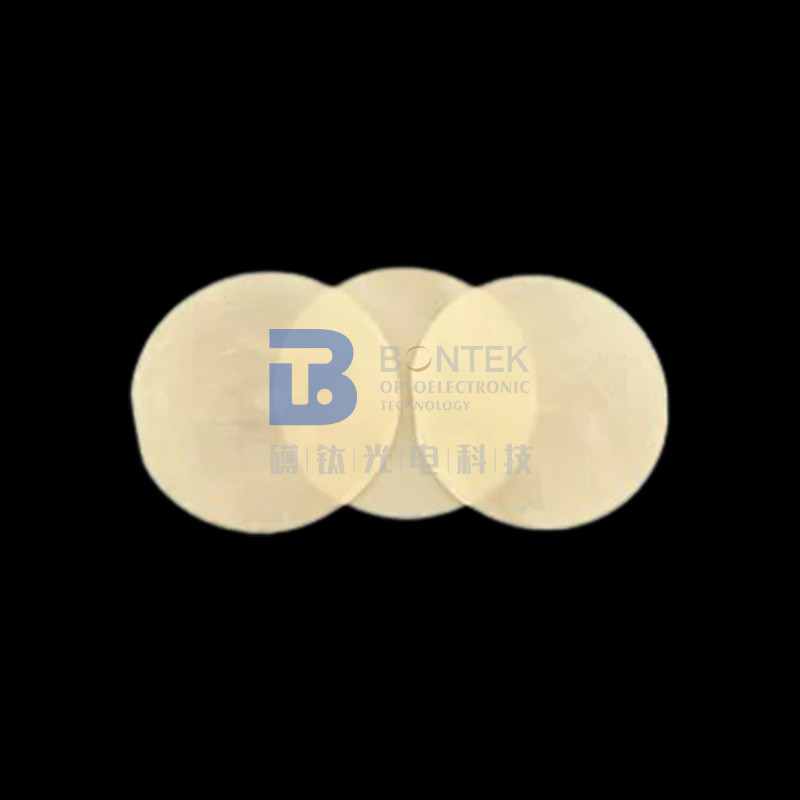

Langasite wafers are substrates fabricated from single crystal langasite suitable for use in surface acoustic wave applications. Such wafers are most commonly specified as 3" diameter with a reference flat. Wafer orientation is customer specified based on desired component performance characteristics. A high quality, low damage surface is prepared on one major (propagating) surface by polishing. The back side is usually lapped to a rougher finish to attenuate unwanted vibration modes.
|
Crystal Structure |
regional system, group 33 a= 8.1783 c = 5.1014 |
|
Growth Method |
Czochralski |
|
Hardness |
6.6 Moh's |
|
Density |
5.754 g/cm3 |
|
Melt Point |
1470 °C ( phase transition point: N/A) |
|
Thermal expansion (x10-6/ oC) |
α 11: 5.10 α 33: 3.61 |
|
Acoustic velocity, SAW |
2400 ( m/sec ) |
|
Frequency constant, BAW |
1380 ( kHz/mm ) |
|
Piezoelectric coupling |
K2 (%) BAW: 2.21 SAW: 0.3 |
|
Inclusions |
N0 |
|
Langasite Wafer, YXIs /0/140/25 |
Tolerance |
|
|
Cut, A1 |
138.5° |
± 0.1° |
|
Cut, A2 |
26.7° |
± 0.1° |
|
Diameter D mm |
100mm |
±0.25mm |
|
Thickness T.mm |
0.50mm |
±0.03mm |
|
Reference Flat F1,mm |
32.0mm |
±2.50mm |
|
Secondary Flat F2, mm |
11.0mm |
±2.00mm |
|
Surface |
||
|
Front Surface Finish |
Polished Ra < 0.7 nm |
|
|
Back Surface Finish |
Lapped, 0.4 pm < Ra < 0.6μm |
|
|
Flatness |
< 10μm |
|
|
Front Surface Defects |
||
|
Scratches, cracks, contamination, others (dimples, pits. orange peel) |
No such defects by visual inspection |
|
|
Chips |
|
|
|
Edge chips Surface |
Radial depth < 0.5mm: |
|
|
Bevel |
Rounded Edge |
|
