AT SC Round Cut Quartz Crystal Blanks IEEE Standard Single / Double Rotation For TCXO
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:14001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |

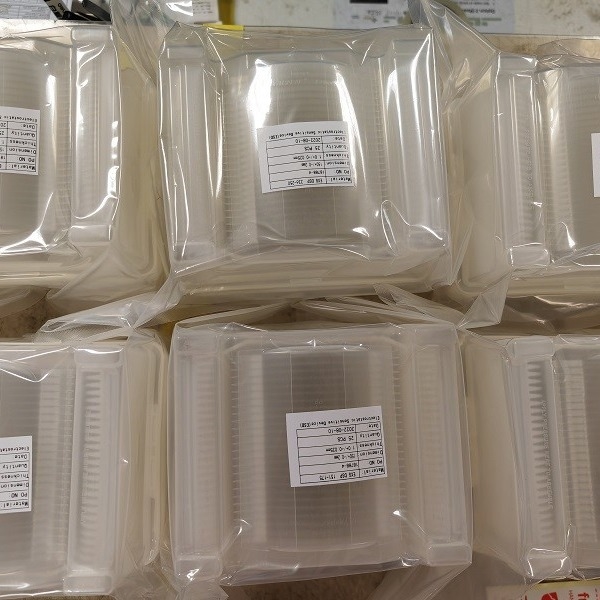

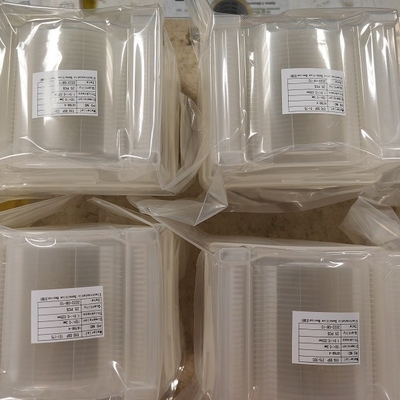

| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 200000 pcs / Month |
|
Detail Information |
|||
| Product: | Cultured Quartz Crystal | Thickness / Frequency: | 1MHz~70MHz, 0.2mm, 0.35mm, 0.5mm |
|---|---|---|---|
| Orientation: | ST-cut, AT-cut | Diameter: | Φ3inch, 4inch, 6inch |
| Dimension: | Φ8mm, 10mm；20×20mm Etc. | Ord: | Fundamental; 3rd Overtone; 5th Overtone |
| Surface: | Polish, Lap, Etch | Dioptric: | Plano-Convex: 0.5 Dioptric～10 Dioptric Bi-Convex: 10 Dioptric～15 Dioptric |
| Highlight: | Round Cut Quartz Crystal Blanks I,AT SC Custom Cut Quartz Crystals,Double Rotation Quartz Crystal Blanks |
||
Product Description
AT ST Cut Quartz Crystal Round Blanks and Wafer
Piezoelectric materials exhibit a directionally related electric charge when subjected to pressure and conversely the application of an electric charge causes a directionally related force to be generated within the material. The application of an alternating electric field will cause the material to vibrate and subsequently mechanically resonate. The frequency of any mechanical resonance is determined by the physical dimensions of the material, the ‘cut angle’ with respect to the crystalline axis of the original mono crystalline crystal, the ambient temperature and any modifying effects of associated mechanical or electrical components.
The properties of crystallised quartz include its high chemical and mechanical stability and a low temperature coefficient, resulting in a small change in resonant frequency for any change in ambient temperature, together with a very high Q at resonance. It occurs naturally and all early experimental work was carried out using natural crystallised quartz.
|
Orientation |
AT, SC, IT,…, etc |
|
Angle Tolerance |
Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, …, etc. |
|
Phi Angle: ±5′, ±10′, ±15′, ±30′, …, etc. |
|
|
Size |
Round (3.0mm～8”)/ Square (1.6x1.6mm～48x48mm or larger)/ SMD (1.2x2.4mm Above) |
|
Size Tolerance |
±0.01mm,+/-0.005mm, +/-0.0005mm, according to size |
|
Frequency |
1 Mhz up to 54Mhz for AT-Cut Fundamental; Up to 70Mhz by Etching |
|
Flat |
Per requested: the flat shall be perpendicular to X axis within ±10 deg |
|
Surface |
#1000(9u); #2000(7u); #3000(5u); #4000(3u) (SiC); Polished(Cerium Oxide)& etched Std |
|
Overtone |
Fundamental; Third Overtone (3rd); Fifth Overtone (5th) |
|
Dioptric |
Plano-Convex: 0.5 dioptric～10 dioptric Bi-Convex: 10 dioptric～15 dioptric |
|
Material |
Cultured Quartz Crystal |
|
Q-Value |
Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
|
ECD |
Max 2 /c㎡, 10/c㎡, Max 30/c㎡, Max 100/c㎡, Max 300/c㎡; Swept Quartz |
|
Inclusions |
Ia, Ib, I, II, III Grades |
|
Swept |
Z bar, Y bar, Or Swept quartz |
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
