LiNbO3 Crystal Piezoelectric Wafer 3 Inch 4 Inch Surface Acoustic Wave
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Piezoelectric Wafer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | LiNbO3 Crystal Piezoelectric Wafer | Diameter: | 3 Inch, 4 Inch, 6 Inch |
|---|---|---|---|
| Crystal: | Lithium Niobate | Thickness: | 0.35mm, 0.5mm, 0.725mm |
| Orientation Flat: | 32.5±2mm, 57.5±2mm, Notch | Finish: | DSP, SSP |
| Application: | Surface Acoustic Wave | Ra Roughness: | <5A, <10A |
| Highlight: | 4 Inch Piezoelectric Wafer,LiNbO3 Crystal Piezoelectric Wafer,Lithium Niobate Crystal Wafer |
||
Product Description

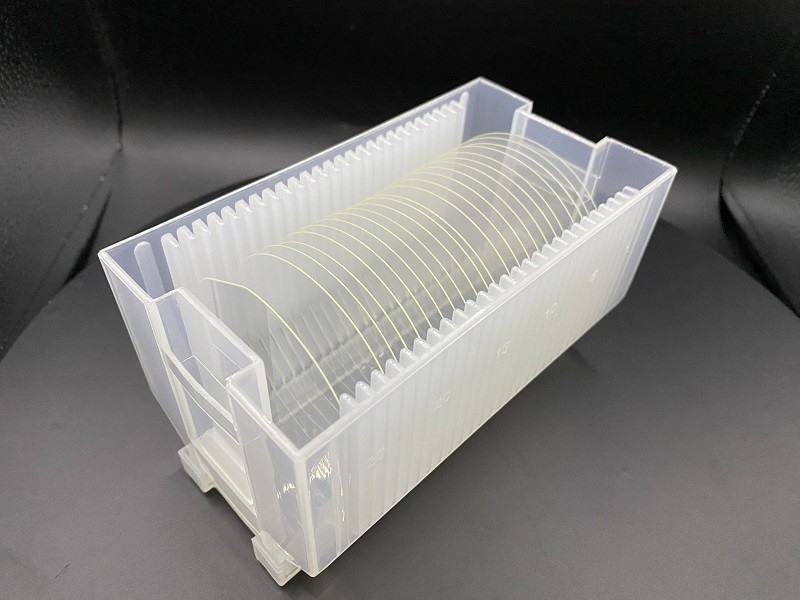

BonTek LiNbO3 Crystal Piezoelectric Wafer 3 inch 4 inch Surface Acoustic Wave
With its large electro-optic coefficients, wide optical transparency window, and availability of high optical quality crystals, LN (lithium niobate) crystal is often the material of choice for optical modulation and Q-switch at near-infrared and infrared wavelengths. For electro-optic modulators (EOM) the crystal can be z-cut with zero residual birefringence along the direction of light propagation or x-cut with non-zero residual birefringence and the maximized effective electro-optic coefficient. For Q-switch the crystal is typically z-cut with zero residual birefringence and an electric field is applied transverse to the direction of light propagation. The piezoelectric ringing in LN is a disadvantage at high repetition frequency, but can be overcome to some extent with proper piezoelectrically damped designs.

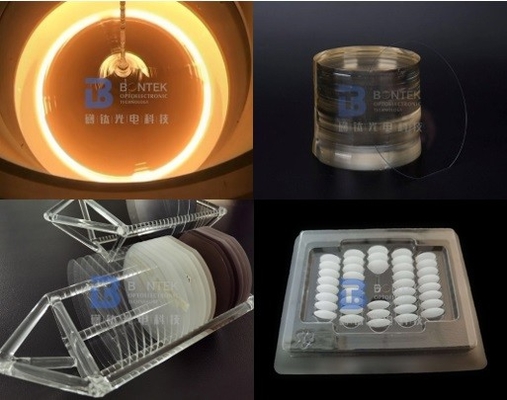

BonTek grows crystal and fabricate wafers, we are piezoelectric specialist. We work mostly with wafers, blanks, substrates made from Quartz Crystal, Lithium Niobate, Lithium Tantalate etc.
|
Material |
Lithium Niobate | Lithium Tantalate | Quartz Crystal |
|
Diameter / Size |
3’’, 4’’, 6’’, 8’’ | 3’’, 4’’, 6’’ | 3’’, 4’’, 5’’, 6’’, 8’’ |
|
Cut Type |
X / Y / Z 36Y / 64Y／128Y |
X / Y-Z / X-112Y 28Y / 36Y / 42Y |
X / Y / Z AT / ST / DT |
|
Surface Finish |
Double side polish / Single side polish | ||
|
Thickness |
0.25mm / 0.35mm / 0.50mm / 1.00mm / 2.00mm | ||
|
TTV |
< 5um | ||
|
PLTV |
>98% (5mm*5mm) | ||
|
LTV |
< 1.5um | ||
|
Bow |
-25um < Bow < ＋25um | ||
|
Warp |
< 30um | ||
|
Roughness |
Ra<0.5nm, Ra<1nm | ||
|
Curie Temp. |
1142℃ ± 2℃ | 605℃ ± 2℃ | 573℃ |
|
Edge Profile |
Round Ground, "C" Shape | ||
|
Flats |
22±2mm, 32.5±2mm, 47.5±2mm, 57.5±2mm, Notch As per request |
||
|
Dope with |
Er, MgO | Fe | with or without seed |
|
Front Side |
Roughness Ra<= 10A | ||
|
Back Side |
Roughness Ra: 0.2--0.7um GC#1000, GC#2000 | ||
|
Appearance |
No Cracks, saw marks, stains | ||
|
Single Domian |
Completed Polarization / Reduced | No Stress | |
