High Resistance Sapphire Polished Wafer 3 Inch C Plane Optical Crystal

High Resistance Sapphire Polished Wafer 3 Inch C Plane Optical Crystal

Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:9001
Model Number: Sapphire (Al2O3)

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: Cassette, Jar, Film package
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 10000 pieces/Month
Get Best Price Contact Now

Detail Information

Material: Sapphire Wafer Growth Method: Kyropoulos Method
Melting Point: 2040 °C Thermal Conductivity: 27.21 W/(m X K) At 300 K
CTE: 5.6 X 10 -6 /K (parallel C-axis) & 5.0 (perpendicular C-axis) X 10 -6 /K Hardness: Knoop 2000 Kg/mm 2 With 2000g Indenter
Specific Heat Capacity: 419 J/(kg X K) Dielectric Const.: 11.5 (parallel C-axis) 9.4 (perpendicular C-axis) At 1MHz
Highlight:

Sapphire Polished Wafer 3 Inch

,

High Resistance Sapphire Polished Wafer

,

C Plane Optical Crystal Sapphire Wafer

Product Description

High Resistance Sapphire Polished Wafer 3 Inch C-Plane Optical Crystal



Sapphire is a single crystal of alumina and is the second-hardest material in nature, after diamond. Sapphire has good light transmittance, high strength, collision resistance, wear resistance, corrosion resistance and high temperature and high pressure resistance, biocompatibility, is an ideal substrate material for the production of semiconductor optoelectronic devices, the electrical properties of sapphire make it become the substrate material for the production of white and blue LED.

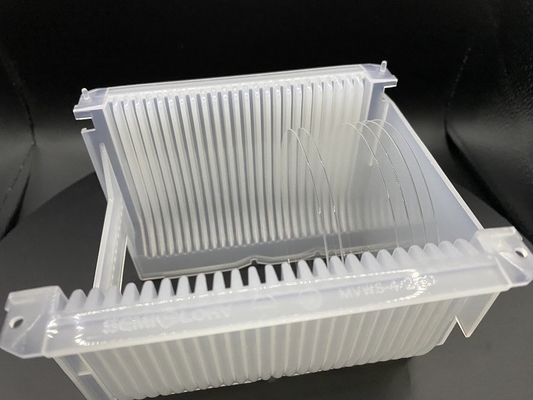

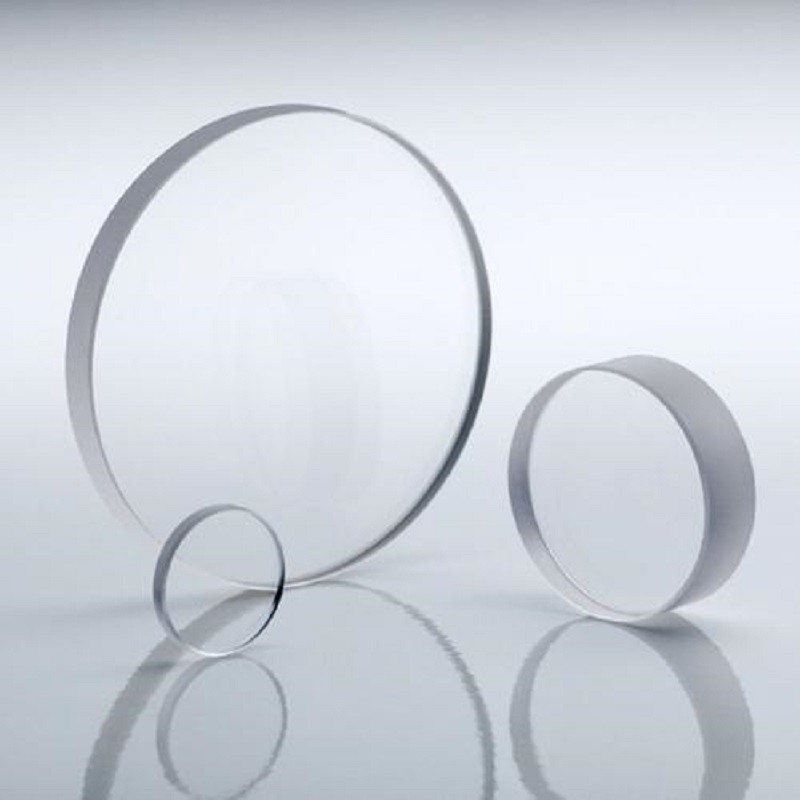

High Resistance Sapphire Polished Wafer 3 Inch C Plane Optical Crystal 0High Resistance Sapphire Polished Wafer 3 Inch C Plane Optical Crystal 1High Resistance Sapphire Polished Wafer 3 Inch C Plane Optical Crystal 2



Item

3-inch C-plane(0001) 500μm Sapphire Wafers

Crystal Materials

99,999%, High Purity, Monocrystalline Al2O3

Grade

Prime, Epi-Ready

Surface Orientation

C-plane(0001)

C-plane off-angle toward M-axis 0.2 +/- 0.1°

Diameter

76.2 mm +/- 0.1 mm

Thickness

500 μm +/- 25 μm

Primary Flat Orientation

A-plane(11-20) +/- 0.2°

Primary Flat Length

22.0 mm +/- 1.0 mm

Single Side Polished

Front Surface

Epi-polished, Ra < 0.2 nm (by AFM)

(SSP)

Back Surface

Fine ground, Ra = 0.8 μm to 1.2 μm

Double Side Polished

Front Surface

Epi-polished, Ra < 0.2 nm (by AFM)

(DSP)

Back Surface

Epi-polished, Ra < 0.2 nm (by AFM)

TTV

< 15 μm

BOW

< 15 μm

WARP

< 15 μm

Cleaning / Packaging

Class 100 cleanroom cleaning and vacuum packaging,

25 pieces in one cassette packaging or single piece packaging.



Item

4-inch C-plane(0001) 650μm Sapphire Wafers

Crystal Materials

99,999%, High Purity, Monocrystalline Al2O3

Grade

Prime, Epi-Ready

Surface Orientation

C-plane(0001)

C-plane off-angle toward M-axis 0.2 +/- 0.1°

Diameter

100.0 mm +/- 0.1 mm

Thickness

650 μm +/- 25 μm

Primary Flat Orientation

A-plane(11-20) +/- 0.2°

Primary Flat Length

30.0 mm +/- 1.0 mm

Single Side Polished

Front Surface

Epi-polished, Ra < 0.2 nm (by AFM)

(SSP)

Back Surface

Fine ground, Ra = 0.8 μm to 1.2 μm

Double Side Polished

Front Surface

Epi-polished, Ra < 0.2 nm (by AFM)

(DSP)

Back Surface

Epi-polished, Ra < 0.2 nm (by AFM)

TTV

< 20 μm

BOW

< 20 μm

WARP

< 20 μm

Cleaning / Packaging

Class 100 cleanroom cleaning and vacuum packaging,

25 pieces in one cassette packaging or single piece packaging.



Item

6-inch C-plane(0001) 1300μm Sapphire Wafers

Crystal Materials

99,999%, High Purity, Monocrystalline Al2O3

Grade

Prime, Epi-Ready

Surface Orientation

C-plane(0001)

C-plane off-angle toward M-axis 0.2 +/- 0.1°

Diameter

150.0 mm +/- 0.2 mm

Thickness

1300 μm +/- 25 μm

Primary Flat Orientation

A-plane(11-20) +/- 0.2°

Primary Flat Length

47.0 mm +/- 1.0 mm

Single Side Polished

Front Surface

Epi-polished, Ra < 0.2 nm (by AFM)

(SSP)

Back Surface

Fine ground, Ra = 0.8 μm to 1.2 μm

Double Side Polished

Front Surface

Epi-polished, Ra < 0.2 nm (by AFM)

(DSP)

Back Surface

Epi-polished, Ra < 0.2 nm (by AFM)

TTV

< 25 μm

BOW

< 25 μm

WARP

< 25 μm

Cleaning / Packaging

Class 100 cleanroom cleaning and vacuum packaging,

25 pieces in one cassette packaging or single piece packaging.
