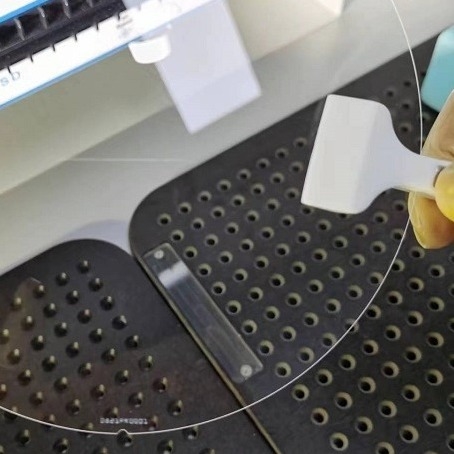

Highly Sensitive Piezoelectric Wafer for Industrial Applications single crystal wafer for optical use
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | SAP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | $60.00/ea |
| Packaging Details: | Cassette, vacuum sealed |
| Delivery Time: | 2~4 weeks |
| Payment Terms: | TT/in advance |
| Supply Ability: | 10000 pcs |
|
Detail Information |
|||
| Size: | Customized | Thickness: | 0.5mm-3mm |
|---|---|---|---|
| Orientation: | ±0.5° | Edge Grinding: | Roundness |
| Parallelism: | ≤3 Arc Sec | TTV: | <10um |
| Surface Roughness: | Ra<0.2nm | ||
| Highlight: | single crystal Piezoelectric wafer,optical use Piezoelectric wafer,Industrial Piezoelectric wafer |
||
Product Description
High-Performance Sapphire Wafer with Perpendicularity ≤3 Arc Min for Industrial Applications
Product Description:
Sapphire Slice, Sapphire Wafer, Sapphire Substrate, and Sapphire Plate
Sapphire Wafer is a type of semiconductor material made of sapphire, which has excellent optical, mechanical, and chemical properties. It is commonly used as the epitaxial layer for GaN-based materials and devices, and is also widely applied in other electronic and optical fields.
Sapphire crystal has a hexagonal lattice structure, which gives Sapphire Wafer high hardness, high thermal conductivity, and resistance to high-temperature oxidation. Due to its excellent optical properties, Sapphire Wafer is also often used as a window material and laser substrate.
In addition, the size of Sapphire Wafer can be customized according to needs, and its surface processing technology is also very mature, which makes it perform excellent in various applications.
Overall, Sapphire Wafer is a very promising semiconductor material with a wide range of application prospects.
Features:
- Product Name: Sapphire Wafer
- Perpendicularity: ≤3 Arc Min
- Surface Quality: Single Side Polished
- Edge Grinding: Roundness
- Flatness: λ/10
- Orientation: ±0.5°
Technical Parameters:
| Parameter | Value |
|---|---|
|
Perpendicularity |
≤3 Arc Min |
|
Clear Aperture |
>90% |
|
Edge Grinding |
Roundness |
|
TTV |
≤3μm |
|
Parallelism |
≤3 Arc Sec |
|
Orientation |
±0.5° |
|
Thickness |
0.5mm-3mm |
|
Size |
Customized |
|
Diameter |
2inch-8inch |
|
Surface Roughness |
Ra<0.2nm |
Applications:
BonTek Sapphire Wafer, model number SAP, is a certified product with ISO 9001. With a minimum order quantity of 10 pcs and a price of $60.00/ea, the wafer is packaged in a cassette with vacuum sealed. The delivery time is 2~4 weeks, and the payment terms are TT/in advance. The supply ability is 10000 pcs. The clear aperture of Sapphire Wafer is >90%, and the surface roughness is Ra<0.2nm. The edge grinding is roundness, and the thickness ranges from 0.5mm to 3mm. The perpendicularity is ≤3 Arc Min.
BonTek Sapphire Wafer is the perfect choice for customers looking for a high quality Sapphire Slice or Sapphire Wafer Substrate. With its ISO 9001 certification, the product is sure to deliver superior performance and reliability. The minimum order quantity, price, delivery time, and payment terms are all attractive features that make BonTek Sapphire Wafer the ideal product for your needs.
Packing and Shipping:
Sapphire Wafers are packaged in foam-lined cardboard boxes and shipped in protective packaging to ensure safe arrival. Each box is labeled with the product name and contents, and is securely sealed. All orders are shipped via a reliable courier service.
