2Inch 3Inch 4Inch Sapphire Wafer For Miniature Electronic Devices
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001 |
| Model Number: | Sapphire (Al2O3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette, Jar, Film package |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Material Name: | Sapphire Wafer | Type: | Single Crystal |
|---|---|---|---|
| Color: | White / Red / Blue | Melting Point: | 2040 Degrees C |
| Surface: | Double Side Polish | Young's Modulus (E): | 335 GPa |
| Application: | Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics | Industry: | Led，optical Glass，eli-ready Wafer |
| High Light: | 4Inch Sapphire Wafer,3Inch Sapphire Wafer,Miniature Electronic Devices Sapphire Wafer |
||
Product Description

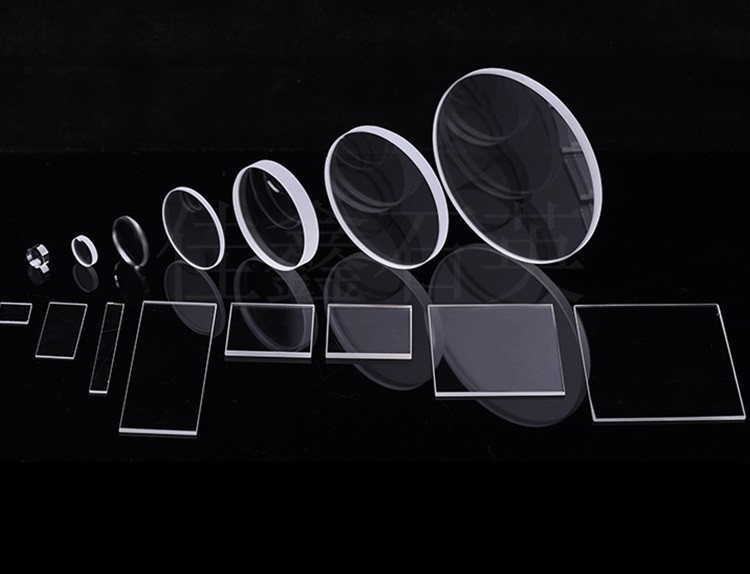

2Inch 3Inch 4Inch Sapphire Wafer for Miniature Electronic Devices
the Sapphire Crystal Wafer - a cutting-edge material that revolutionizes optical, electronic, and semiconductor applications. This exceptional sapphire wafer is renowned for its unmatched optical clarity, mechanical strength, and thermal stability.
Boasting a high refractive index and excellent light transmission properties, the Sapphire Crystal Wafer produces crisp, clear images with minimal distortion. Its high hardness and scratch resistance ensure durability and longevity, even under extreme conditions.
Furthermore, the Sapphire Crystal Wafer's thermal stability is unparalleled. It can withstand high temperatures without deforming or losing its optical properties, making it suitable for use in demanding environments and high-power applications.
Whether you're developing advanced optical systems, semiconductor devices, or any other precision instrumentation, the Sapphire Crystal Wafer offers a superior material solution. Its unique properties ensure high-quality performance and reliability, making it a cost-effective choice for your most critical applications.
Choose the Sapphire Crystal Wafer and experience the difference in clarity, durability, and performance. Let us help you bring your optical, electronic, and semiconductor innovations to the next level.
OPTICAL PROPERTIES
|
Transmission |
0.17 to 5.5 um |
|
Refractive Index |
1.75449 (o) 1.74663 (e) at 1.06 um |
|
Reflection Loss |
at 1.06 microns (2 surfaces) for o-ray - 11.7%; for e-ray - 14.2% |
|
Absorption Index |
0.3 x 10-3 cm-1 at 2.4 um |
|
dN/dT |
13.7 x 10-6 at 5.4 um |
|
dn/dm = 0 |
1.5 um |
|
Orientation |
R-plane, C-plane, A-plane, M-plane or a specified orientation |
|
Orientation Tolerance |
± 0.3° |
|
Diameter |
2 inches, 3 inches, 4 inches, 6 inches, 8 inches or others |
|
Diameter Tolerance |
0.1mm for 2 inches, 0.2mm for 3 inches, 0.3mm for 4 inches, 0.5mm for 6 inches |
|
Thickness |
0.25mm, 0.33mm, 0.43mm, 0.65mm, 1mm or others; |
|
Thickness Tolerance |
25μm |
|
Primary Flat Length |
16.0±1.0mm for 2 inches, 22.0±1.0mm for 3 inches, 30.0±1.5mm for 4 inches, 47.5/50.0±2.0mm for 6 inches |
|
Primary Flat Orientation |
A-plane (1 1-2 0 ) ± 0.2°; C-plane (0 0-0 1 ) ± 0.2°, Projected C-Axis 45 +/- 2° |
|
TTV |
≤10µm for 2 inches, ≤15µm for 3 inches, ≤20µm for 4 inches, ≤25µm for 6 inches |
|
BOW |
≤10µm for 2 inches, ≤15µm for 3 inches, ≤20µm for 4 inches, ≤25µm for 6 inches |
|
Front Surface |
Epi-Polished (Ra< 0.3nm for C-plane, 0.5nm for other orientations) |
|
Back Surface |
Fine ground (Ra=0.6μm~1.4μm) or Epi-polished |
|
Packaging |
Packaged in a class 100 clean room environment |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
