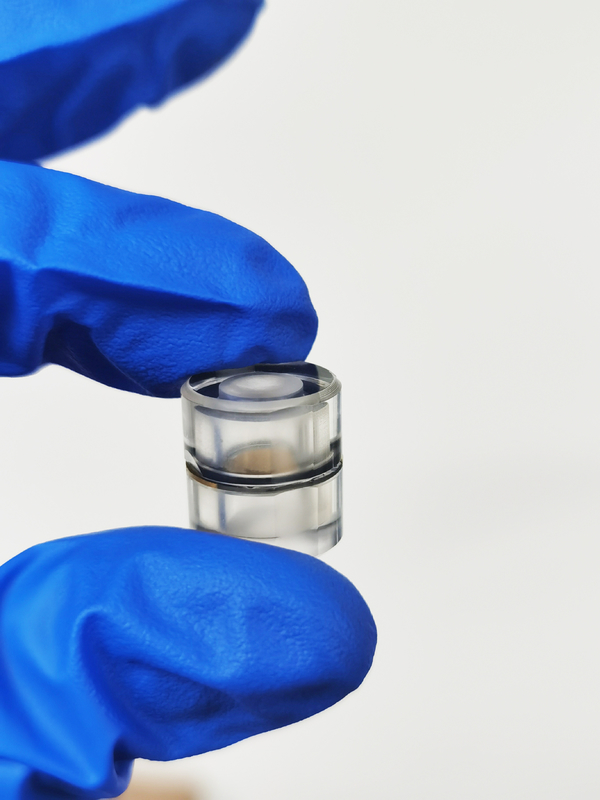

AT-Cut Quartz Piezoelectric Wafer The Perfect Component for Pressure Sensing
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | AT Cut Quartz Endcaps | Material: | Quartz Crystal |
|---|---|---|---|
| Orientation: | AT-Cut | Q-factor: | 2.0-2.4M |
| Mode: | TS Mode | Applications: | Downhole Detection |
Product Description
AT-Cut Quartz Piezoelectric Wafer The Perfect Component for Pressure Sensing
the Revolutionary Piezoelectric Quartz End Cap
The piezoelectric quartz end cap is a cutting-edge product that revolutionizes the way we approach precision instrumentation. This innovative device harnesses the power of piezoelectricity, converting mechanical stress into electrical energy, providing unmatched sensitivity and accuracy.
Crafted from high-grade quartz, our end cap ensures durability and long-lasting performance. Its precision-engineered design ensures seamless integration with various instrumentation systems, making it a versatile solution for a wide range of applications.
The piezoelectric quartz end cap offers numerous advantages over traditional end caps. Its enhanced sensitivity allows for more precise measurements, while its low noise characteristics ensure accurate data acquisition. Additionally, its compact size and lightweight design make it easy to integrate into existing systems.
Whether you're in the field of medical instrumentation, industrial automation, or scientific research, the piezoelectric quartz end cap is the perfect choice for your precision needs. Embrace the future of instrumentation with this revolutionary product and experience the difference it makes in your work.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
