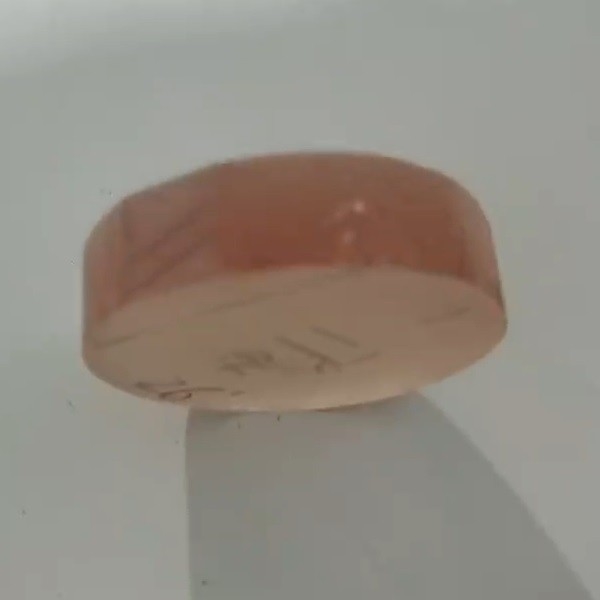

4 Inch LiTaO3 Wafer with High Refractive Index for SAW Sensor and Frequency Converter
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Lithium Tantalate Wafer | Purity: | SAW Grade, Optical Grade |
|---|---|---|---|
| Diameter: | 4inch, 6inch, Etc. | Cut Type: | Y, Z, 36Y, 42Y Etc. |
| Thickness: | 0.35mm, 0.5mm As Required | Surface Finish: | DSP, SSP, Lap As Required |
| Roughness: | Ra<10A, Ra<5A | Use: | SAW, BAW |
Product Description
4 Inch LiTaO3 Wafer with High Refractive Index for SAW Sensor and Frequency Converter
The Ultimate Material for Precision Applications
LiTaO3, a revolutionary material, is taking the precision industry by storm. Its unique properties make it an ideal choice for a wide range of applications, delivering unparalleled performance and reliability.
This advanced material exhibits excellent piezoelectric and pyroelectric properties, converting mechanical or thermal energy into electrical signals with remarkable efficiency. This allows for precise measurements and control in demanding environments.
LiTaO3's high stability and durability ensure long-lasting performance, even under extreme conditions. Its resistance to temperature changes and chemical corrosion makes it a robust solution for various instrumentation systems.
Whether you're in the field of medical instrumentation, industrial automation, or scientific research, LiTaO3 offers a superior alternative to traditional materials. Its precision and reliability will transform your instrumentation systems, elevating your work to new heights.
Embrace the power of LiTaO3 and experience the difference it makes in your precision applications. This cutting-edge material is here to revolutionize the way you approach instrumentation and measurement.
|
Transmission Range |
0.275 - 5.25 µm (thickness 8 mm); High transmittance from 0.4 – 4um |
|
Refractive Index |
no = 2.139, ne = 2.139 @633 nm |
|
Reflection Loss |
13.17%@0.633 µm |
|
Density |
7.4564 g/cm3 |
|
Melting point |
1650°C |
|
Molecular Weight |
235.89 |
|
Thermal Conductivity |
4.6 W/m·K ; 8.78 W/m·K |
|
Spec. Heat Capacity |
424 J/(K·kg) |
|
Hardness (Mohs) |
750 |
|
Application |
electro optic Q-switch, integrated optical substrate, sensor, frequency converter |
|
Material |
3" 4" 6" Lithium Tantalate wafer Saw/Optical grade |
||
|
Curie Temp |
605°C±3°C |
||
|
Doped with |
Fe |
||
|
Single Domain |
Completed Polarization / Reduced |
||
|
Orientation |
36°Y, 42°Y, X-112°Y, Y, Z |
||
|
Diameter |
76.2±0.2mm |
100±0.2mm |
150±0.2mm |
|
Primary Flat |
22±1mm |
32±1mm |
47.5mm, 57.5mm, Notch |
|
Thickness |
0.07mm~1.0mm |
0.1mm~1.0mm |
0.35mm~1.0mm |
|
Surface finish |
Single / Double side polish / Double side lapped |
||
|
TTV |
< 1~5µm |
||
|
BOW |
± (20µm ~40um ) |
||
|
Warp |
<= 20µm ~ 50µm |
||
|
LTV (5mmx5mm) |
<1.5 um |
||
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
||
|
Polished side Ra |
Roughness Ra<=5A |
||
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm, GC#1000 |
||
|
Scratch & Dig (S/D) |
20/10, 40/20, 60/40 |
||
|
Edge Profile |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
||
|
Cracks, saw marks, stains |
None |
||
