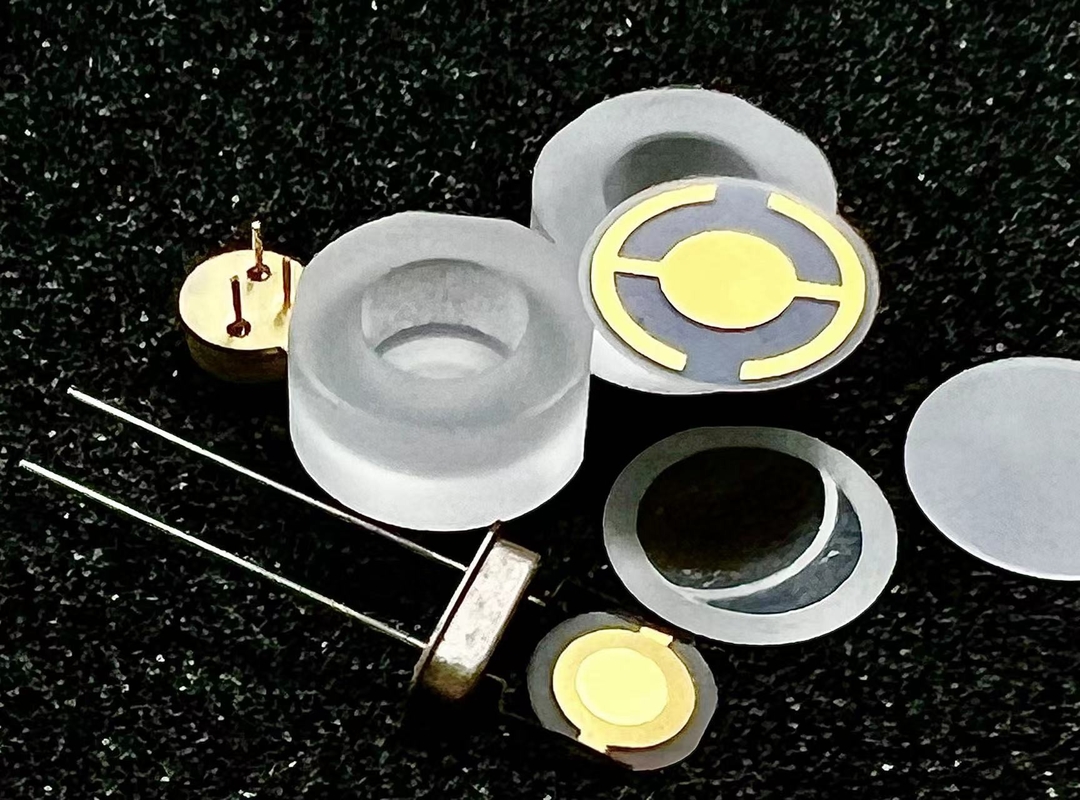

High-Performance AT-Cut Piezoelectric Wafer for Stable Pressure Measurement
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | Quartz Endcap | Material: | Single Crystal Quartz |
|---|---|---|---|
| Orientation: | Coated AT Quartz Blank | Q-factor: | 2.4M |
| Sealing: | Glass Frit | Applications: | Quartz Pressure Sensor |
Product Description
High-Performance AT-Cut Piezoelectric Wafer for Stable Pressure Measurement
the Revolutionary Quartz End Cap
Leading the way in innovative technology solutions, we proudly present the quartz end cap — a groundbreaking advancement in the industry.
Crafted from high-purity quartz, this end cap is a symbol of durability and precision. Quartz, a naturally occurring mineral, is renowned for its excellent thermal stability and resistance to chemical corrosion. This ensures that the end cap maintains its integrity and functionality, even in extreme environments.
Moreover, the quartz end cap offers unparalleled performance. Its unique material properties enable efficient heat dissipation, reducing the risk of overheating and enhancing the overall stability of the device. Whether you're using it in high-performance electronics, precision instrumentation, or any other demanding application, the quartz end cap is your trusted companion.
Embrace the future of technology with the quartz end cap. Its durability, precision, and performance will revolutionize your operations, taking them to new heights.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
