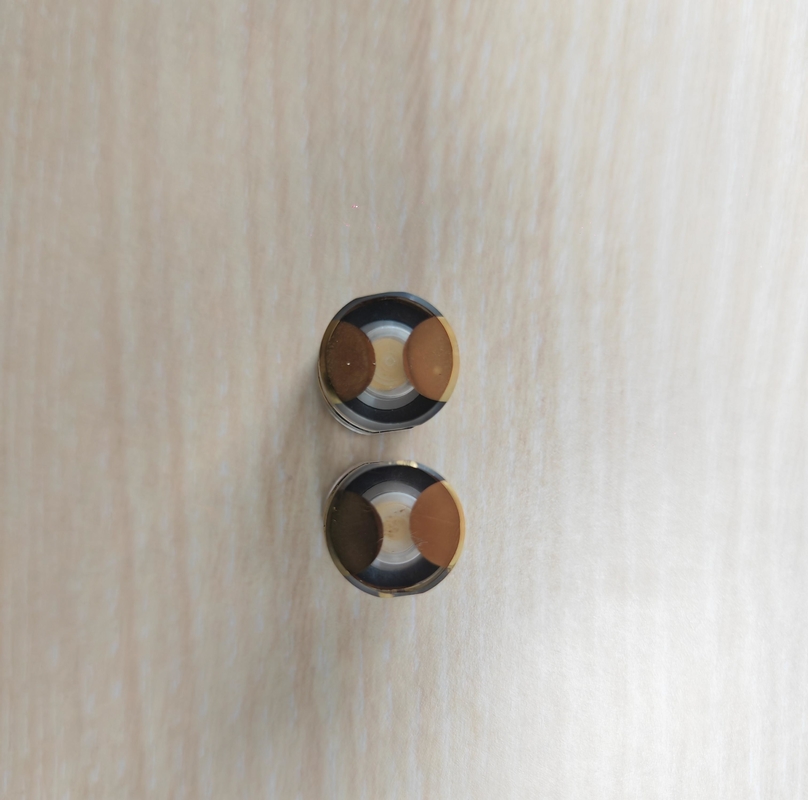

Precision Machined And Seamlessly Integrated Quartz End Caps For Optimal Performance Piezoelectric Wafer
Product Details:
| Place of Origin: | China |
| Brand Name: | CQT |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | Quartz Endcap | Material: | Single Crystal Quartz |
|---|---|---|---|
| Orientation: | Coated AT Quartz Blank | Mode: | Dual-mode Thickness-Shear |
| Sealing: | Glass Frit | Applications: | Downhole Detection |
| Highlight: | Precision Machined Quartz End Caps,Seamlessly Integrated Quartz End Caps,Piezoelectric Wafer Quartz End Caps |
||
Product Description
Precision Machined and Seamlessly Integrated Quartz End Caps for Optimal Performance Piezoelectric Wafer
Unlock Unparalleled Performance with Quartz Endcaps!
In the world of high-precision applications, every component matters. Introducing our premium Quartz Endcaps – the ultimate solution for enhancing the performance and reliability of your devices. Crafted from the purest quartz, our endcaps offer exceptional thermal stability, optical clarity, and mechanical strength, ensuring seamless integration and long-lasting durability.
Quartz Endcaps are ideal for a wide range of applications, including fiber optics, laser systems, and precision sensors. Their superior surface finish and dimensional accuracy guarantee minimal signal loss and maximum efficiency, making them the preferred choice for engineers and researchers seeking to push the boundaries of innovation.
Don't settle for less. Choose our Quartz Endcaps and experience the difference in performance and quality. Elevate your projects to new heights and unlock a world of possibilities with the material that sets the standard for excellence. Order now and embark on your journey to success!
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
