Quartz Endcaps Ultimate Solution For Enhancing Performance And Reliability High-Precision
Product Details:
| Place of Origin: | China |
| Brand Name: | CQT |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | Quartz Endcap | Material: | Single Crystal Quartz |
|---|---|---|---|
| Orientation: | Coated AT Quartz Blank | Mode: | Dual-mode Thickness-Shear |
| Sealing: | Glass Frit | Applications: | Downhole Detection |
| Highlight: | High Precision Quartz Endcaps,High Reliability Quartz Endcaps,Quartz Endcaps |
||
Product Description

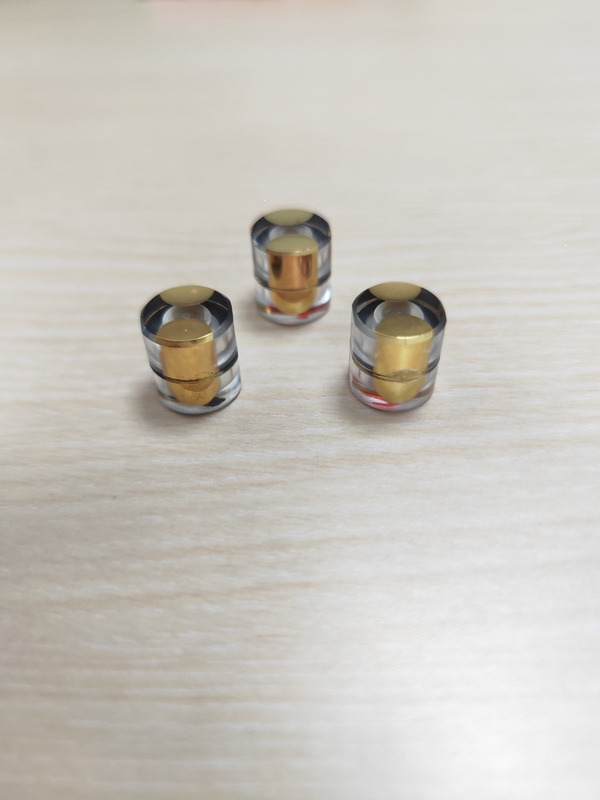

Quartz Endcaps The Ultimate Solution for Enhancing Performance and Reliability in High-Precision Applications
Looking to optimize the performance and durability of your high - temperature or high - pressure systems? Look no further than our premium Quartz Endcaps!
Quartz is renowned for its exceptional thermal stability, chemical resistance, and optical clarity. Our endcaps, crafted from high - purity quartz, are designed to withstand extreme conditions without compromising on quality. They provide a reliable seal, preventing leaks and contamination in your processes, whether it's in semiconductor manufacturing, chemical processing, or research laboratories.
The smooth surface finish of our quartz endcaps ensures minimal friction and wear, extending the lifespan of your equipment and reducing maintenance costs. Their precise dimensions guarantee a perfect fit, enhancing the overall efficiency of your system.
With our quartz endcaps, you can be confident in the integrity of your operations. Upgrade your systems today with our top - of - the - line quartz endcaps. Contact us now to place your order and experience the difference!
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
