Unleash Full Potential Of Quartz With Piezoelectric Quartz Ring For Precision Sensing
Product Details:
| Place of Origin: | China |
| Brand Name: | CQT |
| Certification: | ISO:14001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Film package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs / Month |
|
Detail Information |
|||
| Material: | Quartz Crystal Ring | Size: | Ring Shape |
|---|---|---|---|
| Cut Type: | AT, BT, ST, DT, X, Y, Z, Etc. | Surface: | Polish, Lap, Etch |
| Inner Dia.: | 1.5mm Up | Q-value: | 1.8M, 2.0M, 2.4M, 3.0M |
| Inclusion: | Ia, Ib, I, II, III | Application: | Frequency Selection / QMEMS |
| Highlight: | Quartz Ring for Precision Sensing,Piezoelectric Quartz Ring,Precision Sensing Quartz Ring |
||
Product Description

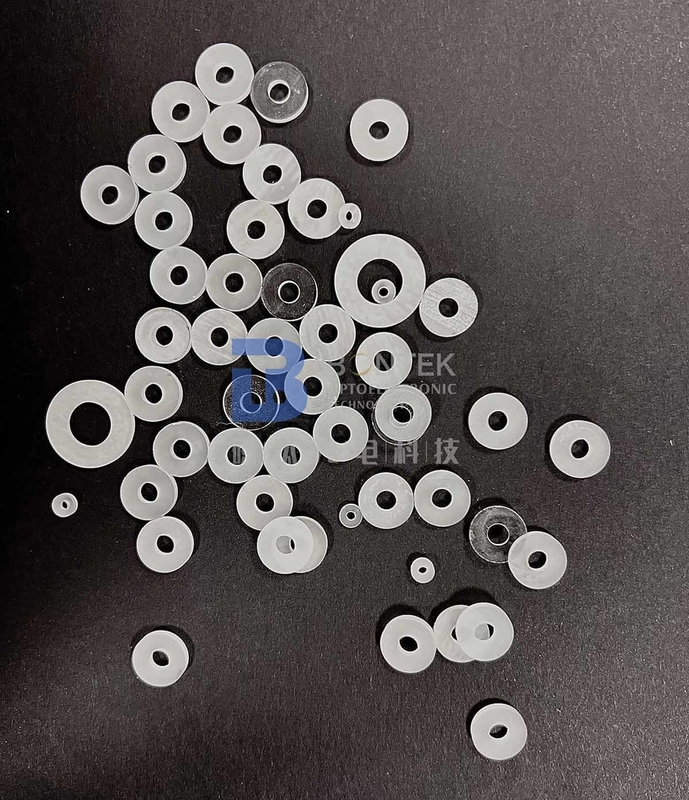

Unleash the Full Potential of Quartz with the Piezoelectric Quartz Ring for Precision Sensing
When it comes to materials that demand the highest standards of quality and performance, our single crystal quartz stands in a league of its own.
Single crystal quartz is renowned for its exceptional piezoelectric properties. This means it can convert mechanical stress into electrical energy and vice versa, making it an indispensable component in a wide range of electronic devices. From oscillators that keep your smartphones and computers running smoothly to frequency control elements in communication systems, our single crystal quartz ensures unparalleled accuracy and stability.
Our single crystal quartz is grown with meticulous precision, resulting in a highly uniform and defect - free structure. This translates to superior electrical and mechanical properties, including low loss, high Q - factor, and excellent temperature stability.
Whether you're in the electronics, aerospace, or telecommunications industry, our single crystal quartz will meet and exceed your expectations. Choose our product for reliable, high - performance solutions. Contact us now to place your order.
|
Material |
Single Crystal Quartz Blanks (Piezo / Optical grade) |
|
Synthetic Q-Value |
Min 1.8×10^6, 2.4×10^6, 3.0×10^6 (IEC standards) |
|
Etch Channel Density (ECD) |
2/cm2,10/ cm2,30/ cm2,100/ cm2,300/cm2；Swept Quartz (IEC standards) |
|
Inclusions Density |
Ia,Ib,I, II,III Grades (IEC standards) |
|
Cutting Angle |
X / Y / Z / AT / BT / ST etc. |
|
Outter Diameter |
3mm ~ 200mm |
|
Inner Diameter |
1.5mm ~ 100mm |
|
Thickness |
0.1mm ~ 5mm |
|
Orientation Flat |
As required, or Pencil marked |
|
Surface Finish |
Double side lapped, Double side polished |
|
Polished side Ra |
<1nm or specific per requested |
|
Back Side Criteria |
General is 0.2-0.5µm or as customized |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
