Upgrade Your Systems with Our Top-of-the-Line Quartz Endcaps for High-Temperature and High-Pressure Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | CQT |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Product: | Quartz Endcap | Material: | Single Crystal Quartz |
|---|---|---|---|
| Orientation: | AT-Cut | Coating: | Au And Cr |
| Sealing: | Glass Frit | Applications: | Quartz Pressure Sensor |
Product Description
Upgrade Your Systems with Our Top-of-the-Line Quartz Endcaps for High-Temperature and High-Pressure Applications
In the world of precision engineering and high - temperature applications, every component counts. That's where our Quartz Endcaps shine!
Made from top - grade quartz, these endcaps boast outstanding properties. They exhibit remarkable thermal shock resistance, effortlessly handling rapid temperature changes without cracking. This means fewer maintenance headaches and longer - lasting equipment for you.
Their excellent optical clarity is a plus for systems where light transmission is crucial. Whether it's in laser technology or lighting fixtures, our Quartz Endcaps ensure optimal performance.
Moreover, the smooth surface finish minimizes particle adhesion, keeping your processes clean and efficient.
Our Quartz Endcaps are available in a variety of sizes and specifications to meet your unique needs. Don't let inferior components hold you back. Upgrade to our Quartz Endcaps and experience a new level of reliability and performance. Place your order now and step into a world of excellence!
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:

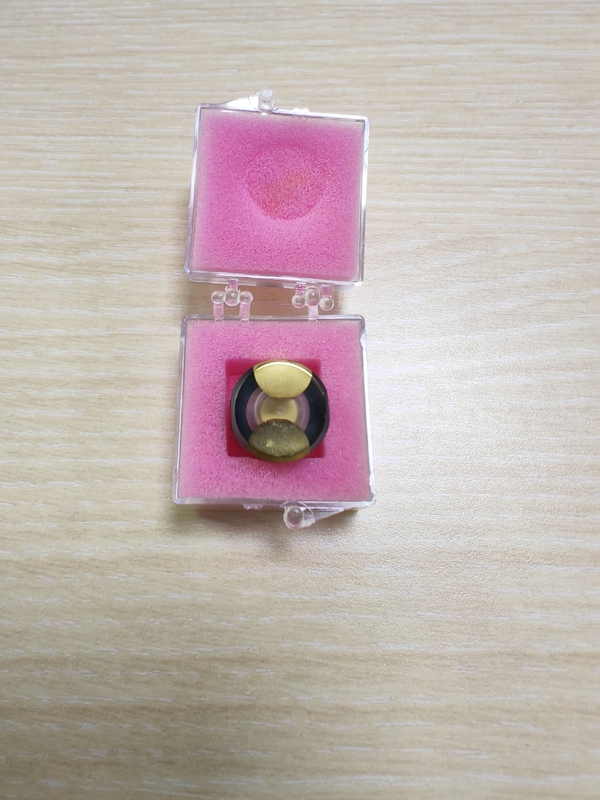

Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
