Upgrade Your Technology with Single Crystal Quartz Piezoelectric Wafers for SAW and MEMS Devices
Product Details:
| Place of Origin: | China |
| Brand Name: | CQT |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Product: | Single Crystal Quartz | Diameter: | 3" 4" 6" |
|---|---|---|---|
| Cut Angle: | AT-cut, ST-cut, Z-cut, X-cut | Thickness: | 0.20mm 0.35mm, 0.5mm,1.0mm |
| Surface: | SSP DSP | Application: | MEMS, SAW Application |
| Inclusion: | Ia, Ib, I, II, III | Growth: | Hydrothermal Growth |
Product Description

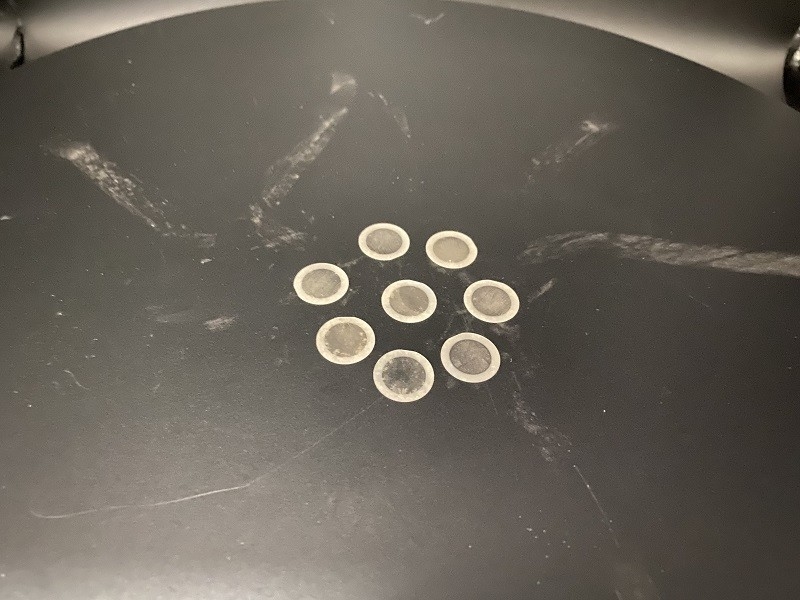

Upgrade Your Technology with Single Crystal Quartz Piezoelectric Wafers for SAW and MEMS Devices
In the dynamic fields of electronics, telecommunications, and sensors, the demand for high - quality components has never been greater. Our Single Crystal Quartz Wafers are the answer to your most challenging requirements.
Meticulously grown and processed, these wafers exhibit the remarkable properties inherent in single - crystal quartz. They offer exceptional piezoelectric characteristics, enabling precise frequency control and stable oscillation. This makes them ideal for applications like quartz crystal oscillators, which are the heartbeat of electronic devices, ensuring accurate timing and synchronization.
Their outstanding thermal stability allows them to maintain performance across a wide temperature range, reducing the need for complex temperature compensation circuits.
Additionally, the low dielectric loss of our Single Crystal Quartz Wafers enhances signal transmission efficiency in high - frequency circuits.
Whether you're in R&D or mass production, our wafers deliver consistent quality. Don't settle for less. Upgrade to our Single Crystal Quartz Wafers and experience a new level of precision and reliability. Contact us to place your order today!
| Single Crystal Quartz Material Properties | |
| Purity | Optical grade: 99.99% |
| Crystal Structure and lattice parameters |
Hexagonal a= 4.914 Å c = 5.405 Å |
| Growth Method | Hydrothermal method |
| Hardness | 7.0 Mohs |
| Density | 2.684 g/cm3 |
| Melt Point | 1610 deg C (phase transition point: 573.1 °C) |
| Specific heat | 0.18 cal/g |
| Thermoelectric Constant | 1200 mV / °C @ 300 °C |
| Thermal conductivity | 0.0033 cal/cm/ °C |
| Thermal expansion coefficient, (CTE) (x10^-6/ K) |
perpendicular to Z axis: 13.71 parallel to Z axis: 7.48 |
| Refractive Index | 1.544 |
|
Q value Acoustic velocity, SAW Frequency constant, BAW Piezoelectric coupling, |
1.8 x 10^6; 2.4 x 10^6, 3.0 x 10^6 3160 ( m/sec ) 1661 ( kHz/mm ) K2 (%) BAW: 0.65 SAW: 0.14 |
| Inclusion | IEC Grade II |
| Diameter | 3”(76.2mm) | 4”(100mm) | 6”(150mm) | 8”(200mm) |
| Thickness | 0.08mm Min-up | 0.10mm Min-up | 0.20mm Min -up | 0.35mm Min- |
| Primary Flat | 22mm | 32mm | 42.5mm | 57.5mm or notch |
| Surface | LTV (5mmx5mm) | <1.5µm | TTV | <1.5~3 µm |
| Bow | -30<bow<30 | Warp | <40µm | |
| Surface Type | SSP / DSP | Edge Criteria | R=0.2mm or Bullnose | |
| Polished side Ra | <0.5nm or per requested | Back Side Criteria | 0.2-0.5µm or as customized |
