Upgrade Your Systems with Our Piezoelectric Wafer Endcaps for Precision Engineering and High-Temperature Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | CQT |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Quartz Sensor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||

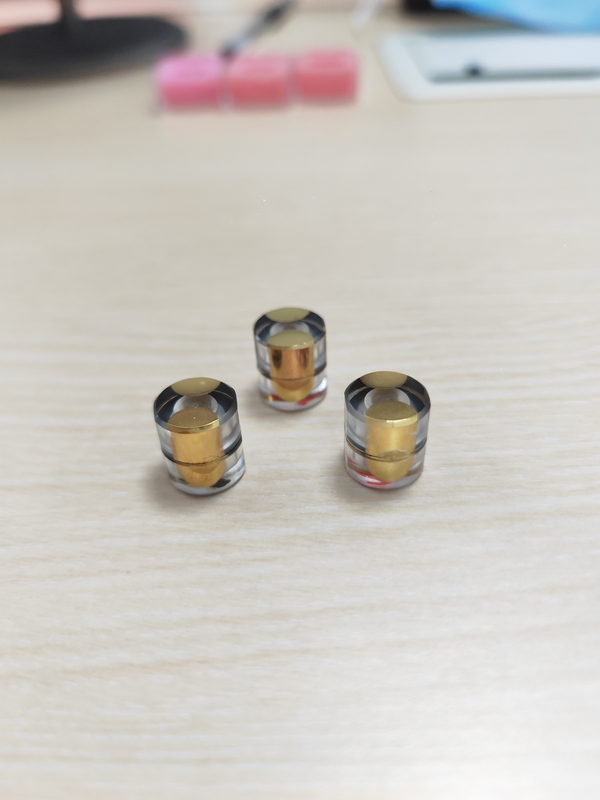

| Product: | Quartz Endcap | Material: | Single Crystal Quartz |
|---|---|---|---|
| Orientation: | Coated AT Quartz Blank | Mode: | Dual-mode Thickness-Shear |
| Sealing: | Glass Frit | Applications: | Downhole Detection |
Product Description
Upgrade Your Systems with Our Piezoelectric Wafer Endcaps for Precision Engineering and High-Temperature Applications
Enhance the efficiency and reliability of your optical assemblies with our premium quartz endcaps, expertly crafted from high-purity Single Crystal Quartz for superior thermal stability, chemical resistance, and exceptional optical clarity . Designed to protect delicate laser gain media, fiber Bragg gratings, or crystal components, our endcaps minimize thermal lensing, reduce contamination risks, and improve beam quality in high-power applications.
Manufactured using ultra-precision CNC grinding and polishing, our quartz endcaps feature parallel surfaces with sub-micron flatness and low surface roughness , ensuring minimal scattering losses and optimal coupling efficiency. Available in custom diameters and thicknesses , with AR/HR coatings tailored to your wavelength requirements, they seamlessly integrate into fiber lasers, solid-state lasers, and optoelectronic devices.
Choose CQT quartz endcaps for unmatched durability, precision, and performance in harsh environments. Contact us today for rapid prototyping, volume pricing, or technical support to optimize your design.
| Materials | Single Quartz Blanks (both Piezo / Optical grade) |
| Materials | Both Pure Z and Y Bar available |
| Synthetic Q-Value | Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
| ECD | Max 100/c㎡, Max 300/c㎡; or per Customer’s request |
| Inclusions Density | I, II, III Grades |
| Cuts Type ( orientation) | AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC ,BC ,ST .TS MT ,NT RT …, etc per requested |
| Angle Tolerance(±) | Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, … , etc |
| Phi Angle:±5′, ±10′, ±15′, ±30′, … , etc | |
| Size For Round endcaps | From 10.0mm to 15.00mm (with flat) , 13.80mm as typical one |
| Height / Thickness | 5.00-7.00 mm per requested |
| Flat | Per requested the flat shall be perpendicular to X axis within ±10 deg |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std |
Packing and Shipping:
Our Piezoelectric Quartz Endcaps are carefully packed in a sealed and secure container with an anti-static layer and moisture barrier to ensure that it arrives securely and undamaged.
The container is then sealed and labeled with a unique identification number for tracking purposes.
We offer both domestic and international shipping options, with the latter requiring additional paperwork. We also provide a tracking number for all domestic shipments.
For further inquiries about our packaging and shipping services, please contact our customer service team.
