Experience Unmatched Performance with Single Crystal Quartz Piezoelectric Wafers for Quartz Crystal Oscillators
Product Details:
| Place of Origin: | China |
| Brand Name: | CQT |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Product: | Single Crystal Quartz | Diameter: | 1" 2" 3" 4" 6" |
|---|---|---|---|
| Cut Angle: | AT-cut, ST-cut, Z-cut, X-cut | Thickness: | 0.20mm 0.35mm, 0.5mm,1.0mm |
| Surface: | Single Side Polish, Double Side Polish | Application: | MEMS, SAW Application |
| Seed: | Seedless / Withseed | Growth: | Hydrothermal Growth |
Product Description
Experience Unmatched Performance with Single Crystal Quartz Piezoelectric Wafers for Quartz Crystal Oscillators

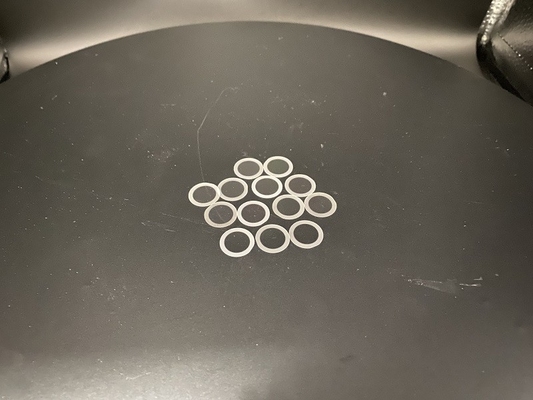

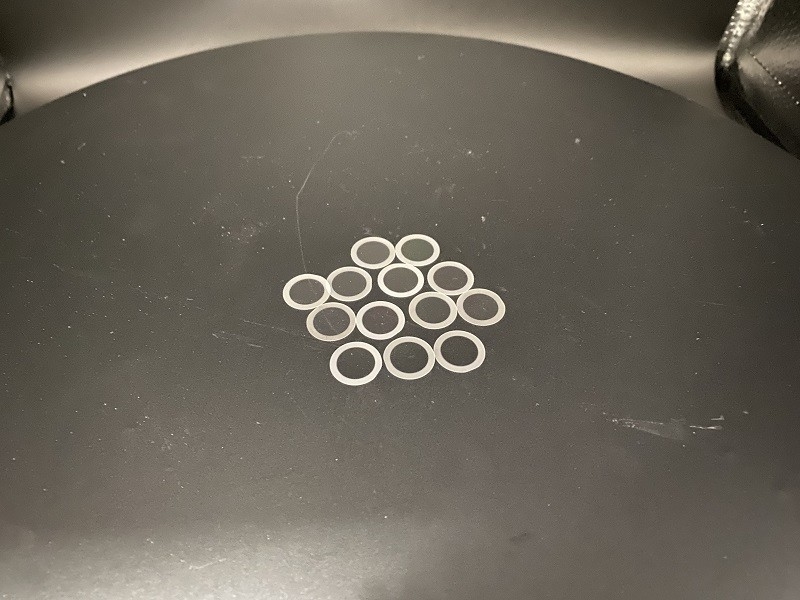

Elevate your technology with our Single Crystal Quartz Wafers, engineered from ultra-high-purity quartz (SiO₂) for unmatched performance in frequency control, sensors, and advanced optics. Unlike polycrystalline alternatives, our wafers feature a perfectly ordered atomic structure, delivering exceptional thermal stability, low acoustic loss, and superior electrical properties.
Key advantages include:
- Unrivaled Frequency Stability: Ideal for SAW/BAW filters, oscillators, and resonators operating in GHz ranges.
- High Optical Transparency with minimal birefringence, perfect for polarizing optics.
- Precision Machining: Available in custom orientations (AT, BT, SC cuts) and dimensions (1–6 inches).
- Extreme Environmental Resistance: Withstands harsh temperatures, radiation, and chemicals without degradation.
Trust our ISO-certified process for consistent quality. Whether for 5G infrastructure, aerospace navigation, or quantum computing, our Single Crystal Quartz Wafers provide the reliability and precision your innovations demand.
Contact us today for technical specifications, rapid prototyping, or volume pricing!
| Single Crystal Quartz Material Properties | |
| Purity | Optical grade: 99.99% |
| Crystal Structure and lattice parameters |
Hexagonal a= 4.914 Å c = 5.405 Å |
| Growth Method | Hydrothermal method |
| Hardness | 7.0 Mohs |
| Density | 2.684 g/cm3 |
| Melt Point | 1610 deg C (phase transition point: 573.1 °C) |
| Specific heat | 0.18 cal/g |
| Thermoelectric Constant | 1200 mV / °C @ 300 °C |
| Thermal conductivity | 0.0033 cal/cm/ °C |
| Thermal expansion coefficient, (CTE) (x10^-6/ K) |
perpendicular to Z axis: 13.71 parallel to Z axis: 7.48 |
| Refractive Index | 1.544 |
|
Q value Acoustic velocity, SAW Frequency constant, BAW Piezoelectric coupling, |
1.8 x 10^6; 2.4 x 10^6, 3.0 x 10^6 3160 ( m/sec ) 1661 ( kHz/mm ) K2 (%) BAW: 0.65 SAW: 0.14 |
| Inclusion | IEC Grade II |
| Diameter | 3”(76.2mm) | 4”(100mm) | 6”(150mm) | 8”(200mm) |
| Thickness | 0.08mm Min-up | 0.10mm Min-up | 0.20mm Min -up | 0.35mm Min- |
| Primary Flat | 22mm | 32mm | 42.5mm | 57.5mm or notch |
| Surface | LTV (5mmx5mm) | <1.5µm | TTV | <1.5~3 µm |
| Bow | -30<bow<30 | Warp | <40µm | |
| Surface Type | SSP / DSP | Edge Criteria | R=0.2mm or Bullnose | |
| Polished side Ra | <0.5nm or per requested | Back Side Criteria | 0.2-0.5µm or as customized |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
