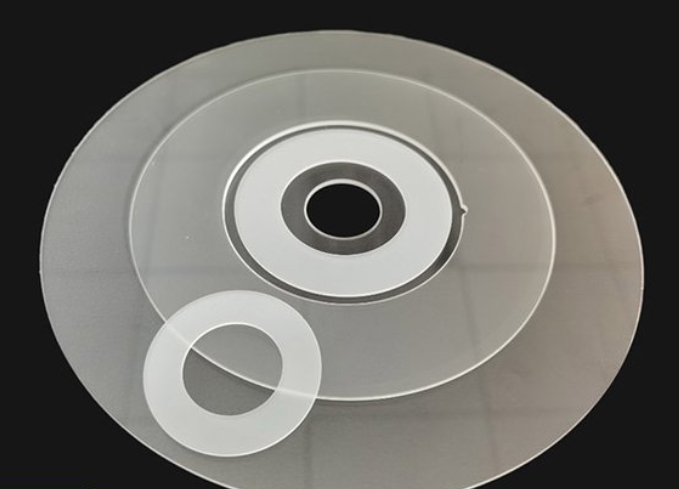

Experience Exceptional Sensitivity with Piezoelectric Quartz Ring for Precision Instrumentation
Product Details:
| Place of Origin: | China |
| Brand Name: | CQT |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Product: | Single Crystal Quartz | Size: | Ring Shape |
|---|---|---|---|
| Cut Angle: | AT, BT, ST, DT, X, Y, Z, Etc. | Inner Dia.: | 1.5mm Up |
| Surface: | SSP DSP | Application: | Frequency Selection / QMEMS |
| Inclusion: | Ia, Ib, I, II, III | ||
| Highlight: | Piezoelectric quartz ring for instrumentation,Precision piezoelectric wafer with warranty,High sensitivity quartz ring sensor |
||
Product Description
Experience Exceptional Sensitivity with Piezoelectric Quartz Ring for Precision Instrumentation
Unlock unparalleled performance with our Piezoelectric Quartz Ring, a high-precision component engineered to convert mechanical stress into electrical signals—and vice versa—with exceptional accuracy. Crafted from ultra-pure quartz crystal, this ring leverages the natural piezoelectric effect to deliver stable frequency responses, low acoustic loss, and superior thermal stability, making it ideal for demanding applications in aerospace, medical imaging, industrial sensing, and advanced electronics.
Whether used in oscillators, filters, or ultrasonic transducers, our Quartz Ring ensures minimal signal distortion and long-term reliability, even in harsh environments. Its robust design resists wear, humidity, and temperature fluctuations, reducing downtime and maintenance costs.
Customizable to meet your exact specifications—including diameter, thickness, and frequency range—our Piezoelectric Quartz Ring seamlessly integrates into your systems, enhancing efficiency and precision. Backed by stringent quality control and global compliance standards, it’s the trusted choice for industries where accuracy and durability are non-negotiable.
Step into the future of piezoelectric technology. Contact us today to order your customized Quartz Ring and elevate your applications to new heights of performance.
| Material | Single Crystal Quartz Blanks (Piezo / Optical grade) |
| Synthetic Q-Value | Min 1.8×10^6, 2.4×10^6, 3.0×10^6 (IEC standards) |
| Etch Channel Density (ECD) | 2/cm2,10/ cm2,30/ cm2,100/ cm2,300/cm2；Swept Quartz (IEC standards) |
| Inclusions Density | Ia,Ib,I, II,III Grades (IEC standards) |
| Cutting Angle | X / Y / Z / AT / BT / ST etc. |
| Outter Diameter | 3mm ~ 200mm |
| Inner Diameter | 1.5mm ~ 100mm |
| Thickness | 0.1mm ~ 5mm |
| Orientation Flat | As required, or Pencil marked |
| Surface Finish | Double side lapped, Double side polished |
| Polished side Ra | <1nm or specific per requested |
| Back Side Criteria |
General is 0.2-0.5µm or as customized |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
