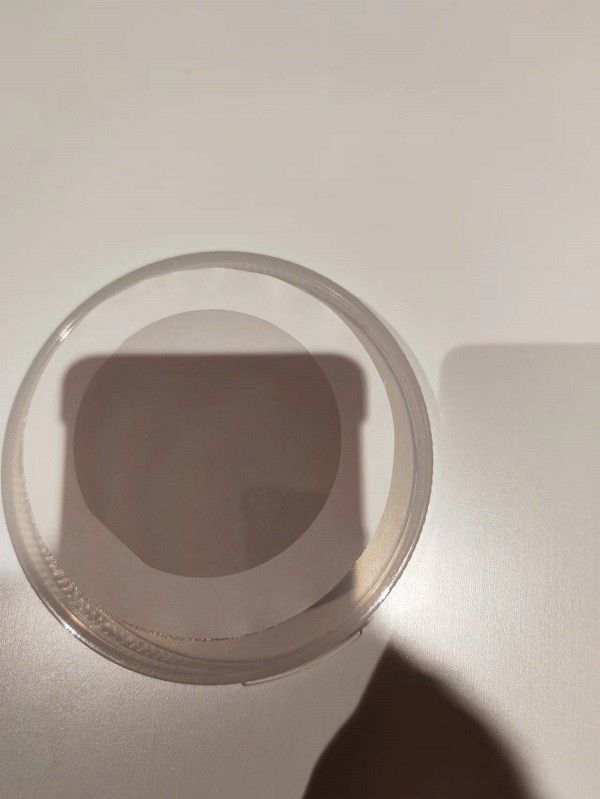

Piezoelectric Wafer Lithium Niobate LiNbO3 5mol Percent MgO Doped Wafers Designed for Acousto Optic Devices and SAW Filters
Product Details:
| Place of Origin: | China |
| Brand Name: | CQT |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate (LiNbO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | LiNbO3 Wafer | Out Diameter: | 3'', 4'' |
|---|---|---|---|
| Orientation: | X, Z, Etc. | Doping: | 5% MgO:LN |
| Thickness: | 250um 300um 500um 1000um | Surface Finish: | DSP, SSP, Lapping |
| Grade: | Optical Grade | Application: | SAW Filter, Ultrasonic Transducer |
| Highlight: | Piezoelectric wafer lithium niobate MgO doped,Acousto optic device piezoelectric wafer,SAW filter lithium niobate wafer |
||
Product Description
Piezoelectric Wafer Lithium Niobate LiNbO3 5mol Percent MgO Doped Wafers Designed for Acousto Optic Devices and SAW Filters
For cutting-edge technologies demanding enhanced performance and reliability, our 5mol% MgO-Doped Lithium Niobate (LiNbO₃) Wafers are engineered to deliver superior electro-optic, acoustic, and nonlinear optical properties. Ideal for high-speed optical modulators, frequency converters, SAW/BAW devices, and quantum optics, these wafers combine the exceptional characteristics of LiNbO₃ with magnesium oxide (MgO) doping for unmatched stability and efficiency.
MgO doping significantly reduces photorefractive damage, enhances thermal stability, and improves optical damage resistance, enabling operation at higher power levels without performance degradation. Our wafers feature excellent transparency (0.35–5 μm wavelength range), high electro-optic coefficients (r₃₃ ≈ 30 pm/V), and precise crystal orientation control (e.g., X-cut, Y-cut, Z-cut) for tailored applications.
Available in custom diameters, thicknesses, and surface finishes, our 5mol% MgO-doped LiNbO₃ wafers meet stringent industry standards for flatness, roughness, and purity. Whether for research, telecommunications, or advanced sensing, these wafers provide a cost-effective, high-performance solution.
Step into the future of photonics—choose our MgO-doped LiNbO₃ wafers for unparalleled precision and durability. Contact us today to request a quote or discuss your project needs!
|
Material |
3" 4" 6" 8" LN wafer (Saw/Optical grade) |
|
Orientation Cut |
Y64°, Y128°, YZ or Customized |
|
Surface finish |
single or double sides polish (DLP/SLP/ SSP/DSP all available ) |
|
Thickness |
0.18/0.25/0.35/0.50/1.00 + mm |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Curie Temp |
1142°C±3°C |
|
Edge Rouding |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Cracks, saw marks, stains |
None |
|
Single Domain |
Completed Polarization/Reduced |
FAQs:
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
